GN616.2 Spring Plungers with Collar, Ball & Front Slot, Steel, Stainless Steel, Plastic

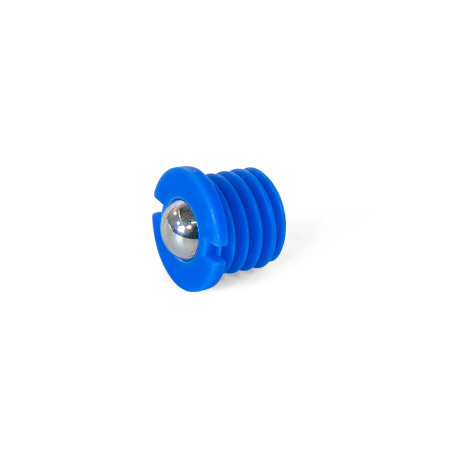

CloseNextPreviousGN616.2 Spring Plunger
Type KU Housing Plastic, Ball Stainless Steel

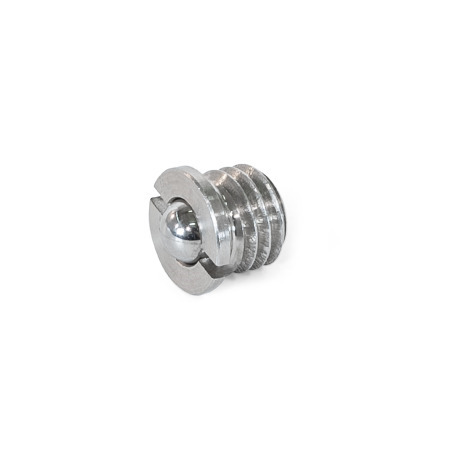

CloseNextPreviousGN616.2 Spring Plunger
Type NI Housing Stainless Steel, Ball Stainless Steel
Choose your Part
Please select desired options to reveal part number, price and availability
Options

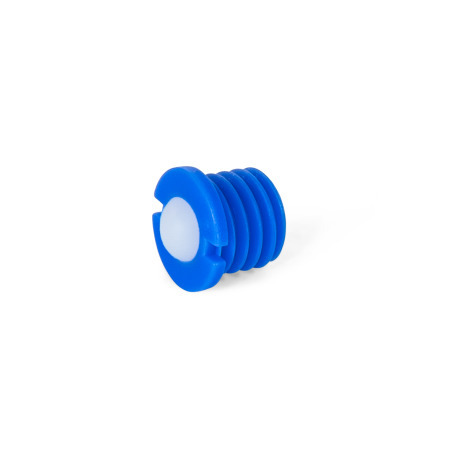

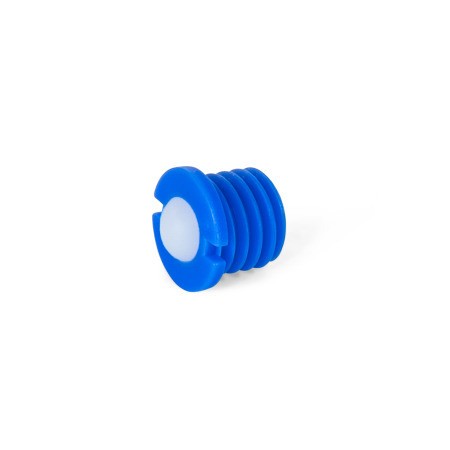

Type KD - Housing plastic, ball plastic
Type KU - Housing plastic, ball stainless steel
Type NI - Housing stainless steel, ball stainless steel

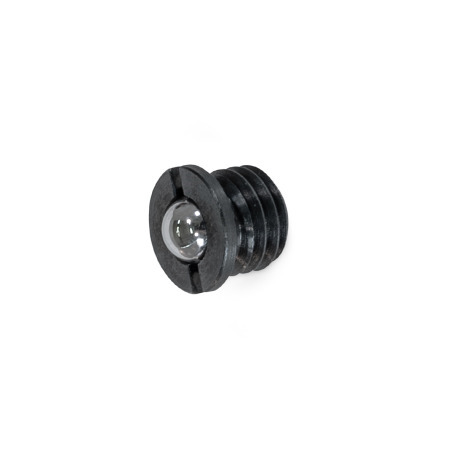

Type ST - Housing steel, ball stainless steel
Product Description
GN616.2 Spring Plungers with Collar, Ball & Front Slot, Steel, Stainless Steel, Plastic
Spring plungers GN 616.2 are used for locking as well as for push-on and push-off functions.
The slot on the ball side is used for screwing into pocket holes. A mounting tool, GN611.2, is available (see table).
Specification
- Type ST
- Housing - steel, blackened
- Ball - stainless steel AISI 303, hardened
- Type NI
- Housing - stainless steel AISI 303
- Ball - stainless steel AISI 303, hardened
- Type KU
- Housing - plastoc polyacetal (POM), operating temperature -30º C to +50º C, blue
- Ball - stainless steel AISI 420C, hardened
- Type KD
- Housing plastic, polyacetal (POM), operating temperature -30 C to +50 C, blue
- Ball - plastic, polyaceral (POM), white
- Spring - stainless steel AISI 302
Accessories
Mounting tools GN611.2
CAD Viewer
Technical Data
