GN617 Indexing Plunger, Stainless Steel, Plastic Knob

Close Next Previous

Close Next Previous

GN617: Indexing Plunger
Type: A - without Lock Nut, with Knob

Close Next Previous

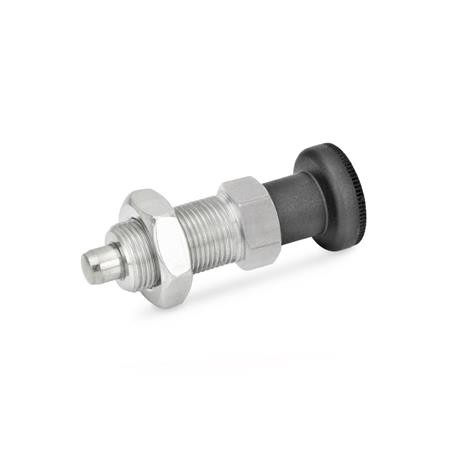

GN617: Indexing Plunger
Type: AK - with lock nut, with lifting knob

Close Next Previous

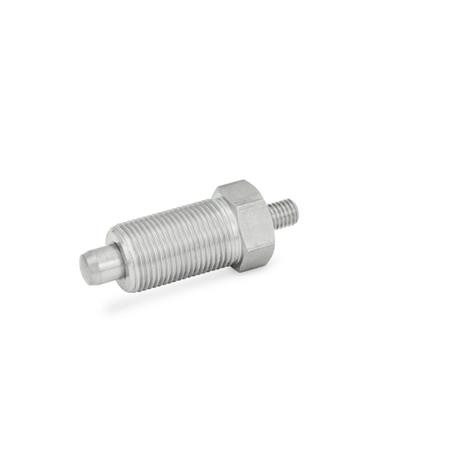

GN617: Indexing Plunger
Type: G - without lock nut, with threaded rod

Close Next Previous

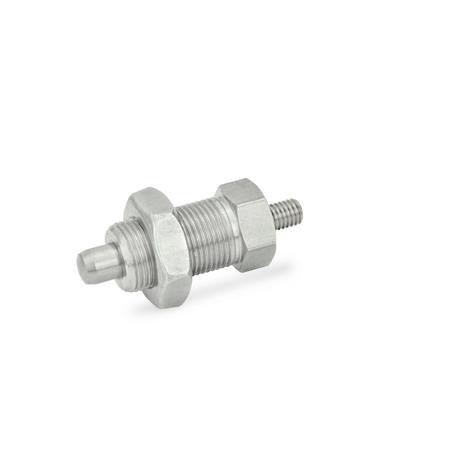

GN617: Indexing Plunger
Type: GK - with lock nut, with threaded rod

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - without lock nut, with knob

Type AK - with lock nut, with lifting knob

Type G - without lock nut, with threaded rod

Type GK - with lock nut, with threaded rod

Product Description

GN617 Indexing Plunger, Stainless Steel, Plastic Knob, without Rest Position

Indexing plunger GN 617, type G or GK can be operated without the standard knob, where applications demand this.

Stainless steel is ideal for clean room environments

The indexing plungers are designed so that the plunger set in the end position (spring is "on block") can also absorb axial forces. For applications in which these forces are substantially above the tensile force applied by the operator (Type G), GN817 indexing plungers are to be preferred.

Specification

Stainless Steel NI AISI 303. Plunger pin chemically nickel plated
Knob - Plastic (Polyamide PA), black matt finish, not removable.
