GN62444 Cable Glands, Brass / Stainless Steel / Plastic, PG Thread

Choose your Part

Please select desired options to reveal part number, price and availability

Product Description

GN62444 Cable Glands, Brass / Stainless Steel / Plastic, PG Thread

Cable glands GN 62444 are used to feed cables or wires into enclosures, relieve strain, and provide a seal. Within the specified clamping range, the sealing and clamping effect increases with the cable diameter.

The cable glands can be screwed into an existing internal thread or mounted in a through hole using a mounting nut.

The metal versions include an O-ring for sealing against the enclosure. The plastic version is sealed without an additional sealing ring

Specification

• Housing
• Brass, nickel plated, MS.

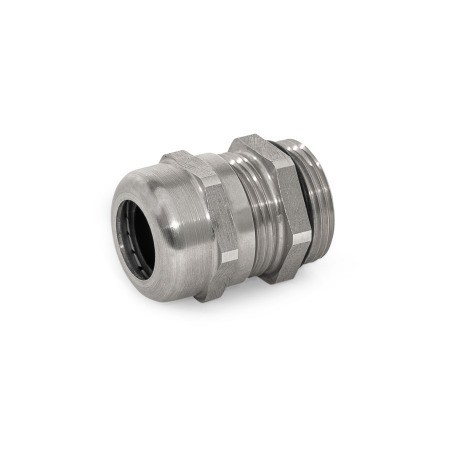

• Stainless Steel NI AISI 303M/strong>.

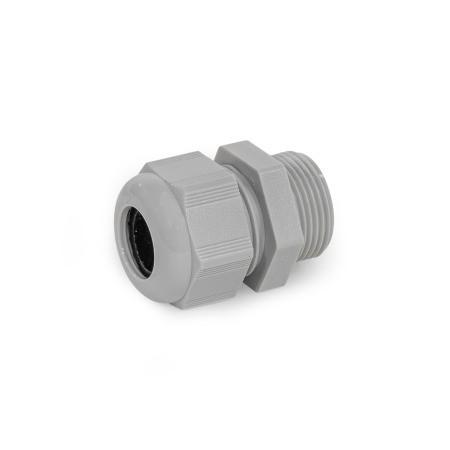

• Plastic, polyamide (PA), grey, RAL 7035 KLG.
• Seal Insert - Chloroprene rubber
• Clamping Insert - Plastic, polyamide (PA)
• O-Ring for MS/NI - Acrylonitrile butadiene rubber (NBR)
• Operating temperature -40 degrees C to +100 degrees C.
• Protection class IP 68

Accessory

Mounting Nuts GN 62444.1

Threaded Plugs GN 62444.2

Multiple Sealing Inserts GN 62444.3

Reducers GN 62444.4
