GN646.3
Carrier Profiles, for Roller and Ball Tracks
Please select desired options to reveal part number, price and availability
Options
Type B - Block Bracket
Type W - Angle
Product Description
GN646.7 Mounting Brackets for Roller Rail Assemblies

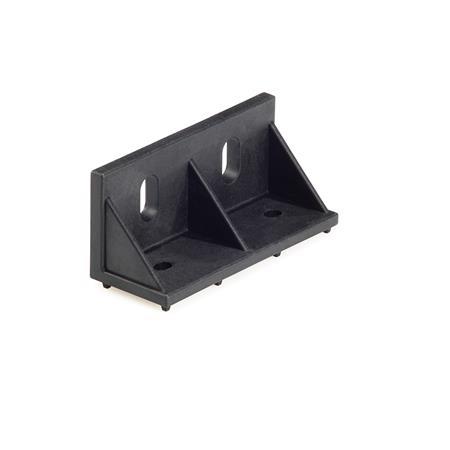

Mounting brackets GN 646.7 (Type W) can be used to mount roller rails at a right angle to the support surface, e.g. for the sideways transport of the conveyed material through roller rails. The positioning pins engage with the appopriate notches of the carrier profile GN 646.3 so that the angle is positioned in the correct location bracket and locked in place.

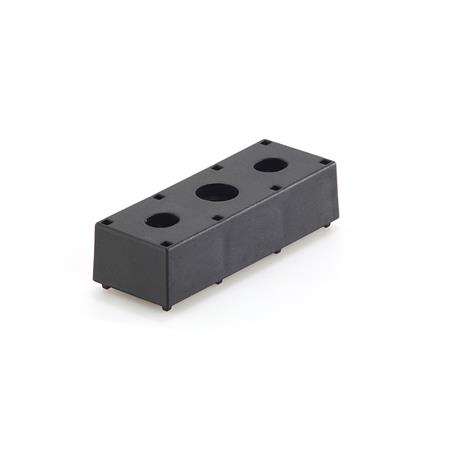

The mounting brackets (Type B) expand the mounting options for roller rails. The dimensions match the angles. The positioning pins engage with the appropriate notches of the carrier profile GN 646.3 or into the appropriate recesses of the groove. Also, a retaining rod with Ø 12 can be attached to the mounting block.
Specification
Plastic Polyamide PA, black, temperature resistant up to 90 °C
