Product Description

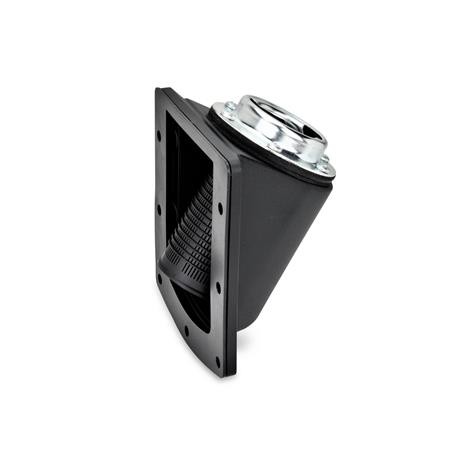

GN664.1 Filler Strainer, for Side Mounting
Filler strainers GN 664.1 are available with mounting flange for threaded or bayonet (BA) connection. Filler strainers prevent the ingress of coarse impurities during the refilling process.
The side flange is fitted with seven M6 screws on the wall of the tank. These mounting screws are not included. When installing the flange it is important that the screws are not overtightened (torque max. 8 Nm) to prevent deformation of the flange and possible weakening of the sealing.
Breather caps must be ordered separately.
Specification
Threaded flange - Plastic, glass fibre reinforced, black, matte finish
Filler strainer - Plastic (Polypropylene PP), glass fibre reinforced, temperature resistant up to 90°C, black, matte finish
Flange for fitting bayonet - Steel, zinc plated, blue passivated
Seal - cork, rubber impregnated
On Request
Mounting flange without filler strainer
