GN215
Indexing Lever, With or Without Serrations, Steel
Please select desired options to reveal part number, price and availability
Options
Type A - With arrow.

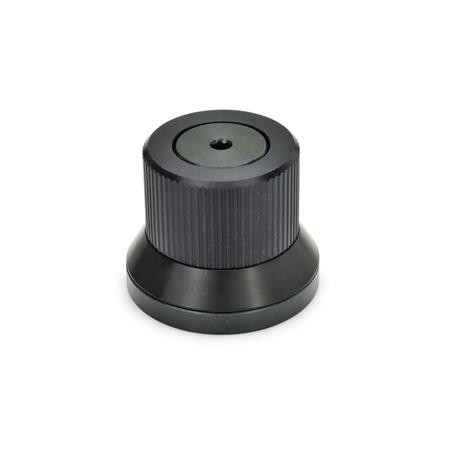

Type B - Neutral, without arrow or scale.
Type S - With standard scale, 0 - 9, 100 graduations acc. d1/100 A RA 0-10-20 - 90 / 10

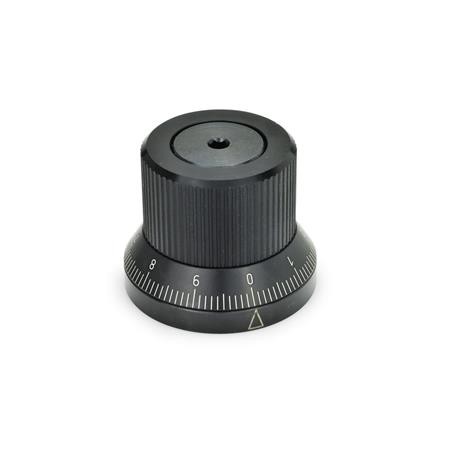

Type KS - With custom graduation.
Product Description
GN700 Adjustable Knob with Stepless Positioning.
With this GN 700 adjustable knob, a shaft can be infinitely adjusted in both directions. The anti-backlash mechanism with a max. load of 15 Nm ensures the firm locking of the shaft in any position.
This mechanism prevents any uncontrolled movement of the shaft. The locking action is a safety feature to prevent unwanted re-adjustments caused by backlash and vibration.
The scale and the arrow on the control knobs are indelibly marked and easily legible.
They can be supplied blank or with a standard scale or with custom graduation markings of various designs.
Specification
On Request
Custom Graduations available
See here for further details on Custom Graduations for designs and prices.
Please note: An additional surcharge applies for custom graduation. If this is not chosen on the original order, this will be invoiced separately.
