GN707.4 Split Shaft Collar, With Hand Lever, Steel, Stainless Steel, Aluminium

CloseNextPrevious



CloseNextPrevious

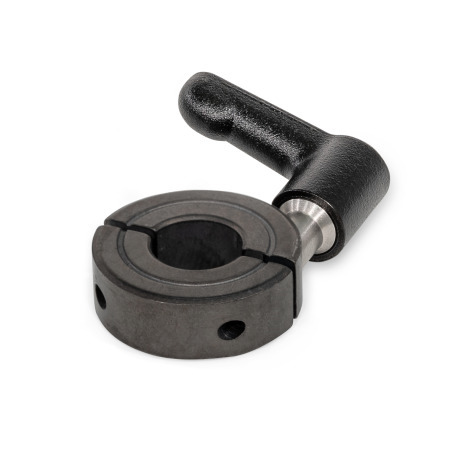

GN707.4 Split Shaft or Set Collars, with Hand Lever
Material: Steel ST



CloseNextPrevious

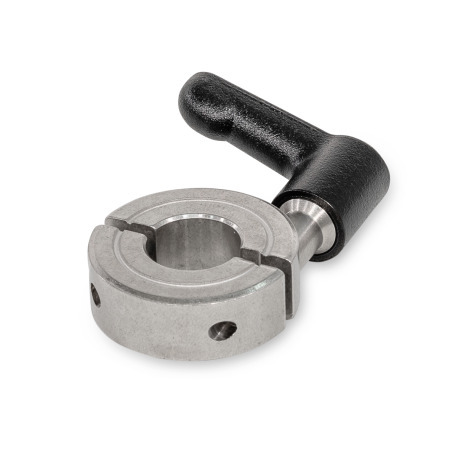

GN707.4 Split Shaft or Set Collars, with Hand Lever
Material: Stainless Steel NI



CloseNextPrevious

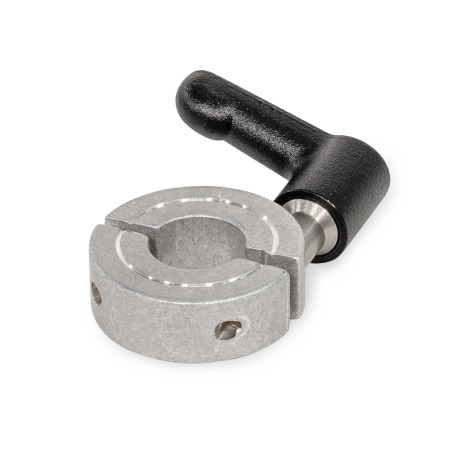

GN707.4 Split Shaft or Set Collars, with Hand Lever
Material: Aluminium AL



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

CAD Viewer Technical Data

Product Description

GN707.4 Split Shaft Collar With Hand Lever, Steel, Stainless Steel, Aluminium

Split shaft or set collars GN 707.4 are used when axial mounting isn't possible. They can be clamped easily and quickly without tools by reducing the slot height using an adjustable hand lever. For example, this allows them to be used as a frequently adjusted end stop.

The thread locking of the supplied socket cap screw ensures that the slot height set during installation is retained even when the clamping lever is released.

The dimensions of the split shaft collars correspond to the semi-split shaft collars GN706.2 / GN706.4. The thread d3 for sizes d1 = 16 to 36 is designed as a through hole; for sizes d1 = 42 and larger, it is designed as a blind hole.

Specification

Shaft collar

  • Steel, sintered (Distaloy AB, black, steam oxidised, ST.
  • Stainless steel AISI 316L, sintered, NI.
  • Aluminium, turned, ground, AL.

    • Socket cap screw ISO 4762 - stainless steel AISI 304, thread locking, polyamide patch coating (PFB), blue

    Adjustable hand lever, zinc die casting, powder coated, black, RAL 9005, textured finish.

  • Insert and retaining screw - stainless steel AISI 303

    • Related Series
