GN2372
Stainless Steel-Plates with tapped holes
Please select desired options to reveal part number, price and availability
Options

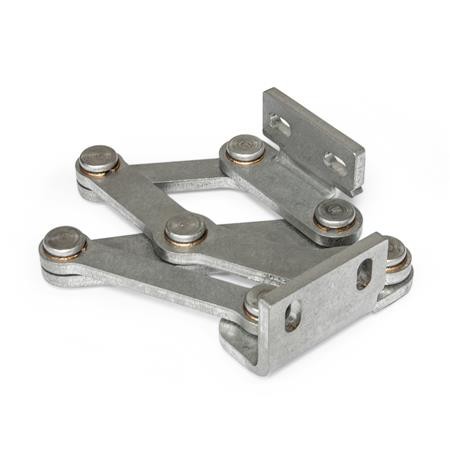

Type L - Fixing angle piece left
Type R - Fixing angle piece right
Product Description
GN7231 Multiple-joint Hinges Inside, Stainless Steel, Opening Angle 90°
Multiple-joint hinges GN 7231 are installed on the inside of flaps, hatches and doors to save space and ensure protection against vandalism. The hinges have a maximum opening angle of 90°, making them perfect for use with thick doors.
Use of this hinge type leaves housing exteriors free of attachments that do not match the design or that should be avoided entirely in the interests of fast and easy cleaning.
They are generally used in pairs, meaning that one L type and one R type are used per opening. For higher loads, e.g. from large flaps or hatches, these can be supplemented with additional hinges of any type.
Specification
Stainless Steel NI AISI 304 - matt, ground MT
Friction bearing - Bronze, self lubricated
