GN723.4 Control Knob, Aluminium

Close Next Previous

GN723.4: Control Knob
Type: M - with Arrow

Close Next Previous

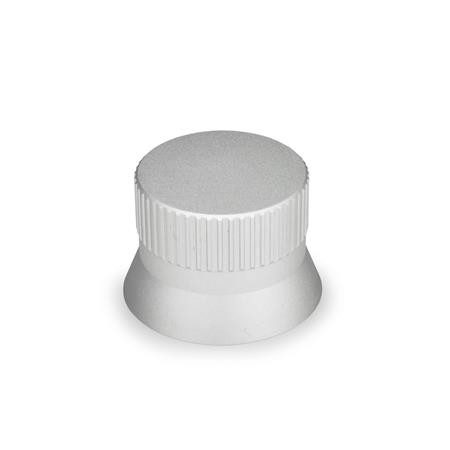

GN723.4: Control Knob
Type: N - Neutral

Close Next Previous

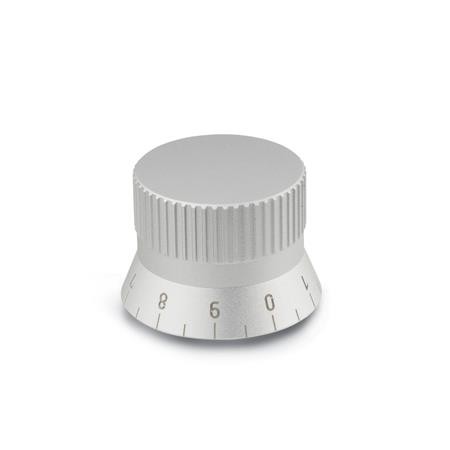

GN723.4: Control Knob
Type: S - With Scale 0...9, 20 Graduations

CAD Viewer

Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type N - blank

Type M - with arrow

Type S - with scale 0 - 9, 20 graduations

CAD Viewer

Technical Data

Product Description

GN723.4 Aluminium Control Knob

These GN 723.4 control knobs are an accurate means of making fine, precise position adjustments.

Both scale and reference marks on the control knobs are indelibly marked and easily legible. These control knobs can be supplied blank, with standard scale, or with custom graduation markings.

They can also be combined with reference flanges GN723.3 to offer the following advantages:

The flange has reference markings relating to the control knob scale, allowing accurate alignment.
They give additional support to the control shaft.
They can be fitted with end-stop pins to limit the angular rotation
The friction ring version prevents unexpected movement through vibration.

Specification

Aluminium, anodized, natural colour.
Scale (type S) and arrow (type M), engraved with laser precision.
Grub screw DIN916 - Stainless Steel, with internal hexagon and with serrated point.

On Request

Custom graduations are available in various designs. See further details on Custom Graduations for designs and prices.

Please note: An additional surcharge applies for custom graduation. If this is not chosen on the original order, this will be invoiced separately.
