GN735 Control Handwheel, Fine Control with Low Torque
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type D - with revolving knob
Product Description
GN735 Control Handwheel for Fine Control with Low Torque
These GN 735 control handwheels are used for setting operations with low torque. They enable high control over the chosen setting by using both the handwheel and a fingertip grip.
A coarse setting is made using the cylindrical handle (fingertip grip), followed by a fine setting using the knurled rim of the handwheel.
Specification
- Plastic, Technopolymer (Polypropylene PP), reinforced, shock-resistant, temperature resistant up to 90°C, black, matt.
- Cap colour, matte finish.
- Orange RAL 2004, DOR
- Grey RAL 7035, DGR
- Yellow RAL 1021, DGB

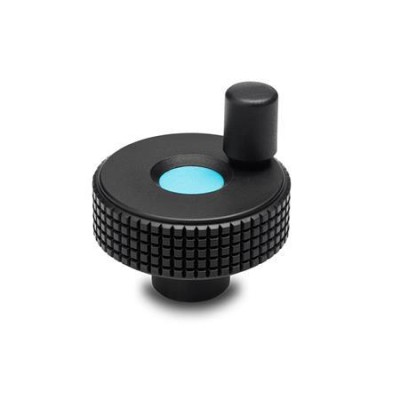

- Blue RAL 5024, DBL
- Red RAL 3000, DRT
- Green RAL 6017, DGN
- Hub Bush - Brass
- Grub screw DIN916 - with internal hexagon and serrated point
- Revolving knobs GN595 - Plastic, Technopolymer (Polyamide PA), black, matte. Spindle steel zinc plated, blue passivated.
