GN7802
Spur Gears, Plastic, Pressure Angle 20 Degrees, Module 1
Please select desired options to reveal part number, price and availability
Options
Type VG - Square, straight, toothed
Product Description

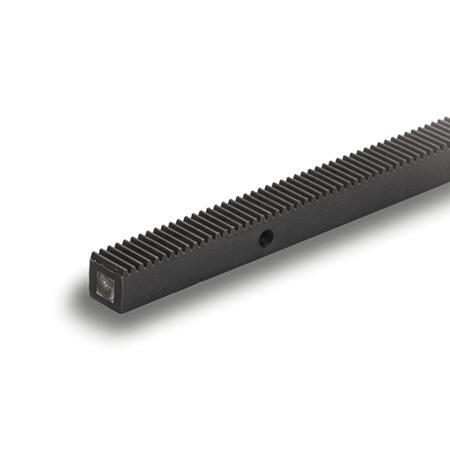

GN7822 Gear Racks, for Spur Gears, Pressure Angle 20 Degrees, Module 1 / 1.5 / 2 / 3
Gear racks GN 7822 are used in combination with spur gears GN7802 to convert rotary motion into linear motion. They are used in automation applications with high repeatable precision and frequent changes of direction and load.
The steel core increases the stiffness and prevents bending of the racks. In addition, modules 1 / 1.5 / 2 are designed for continuous installation of the racks.
The gear racks have a reference profile toothing with a pressure angle of 20°. The force FS refers to the maximum permissible force that can be applied to a single tooth.
Specification
On Request
