GN9192.2 Positioning Ring for Down Thrust Clamps GN9192
Choose your Part
Please select desired options to reveal part number, price and availability
Product Description

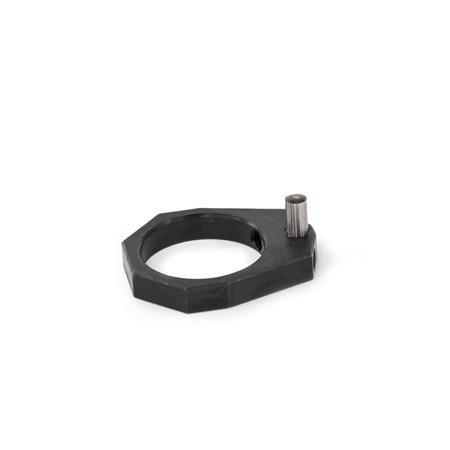

GN9192.2 Positioning Ring for Down Thrust Clamps GN9192
Positioning rings GN9192.2 limit the swiveling range of down-thrust clamps GN9192 to 110° left or right via a positioning pin. The position of the ring can be adjusted to ensure that the clamping position is reached reliably when the clamp swivels against the positioning pin.
The positioning ring is secured with two set screws. The stroke of the down-thrust clamp is reduced by the height h1 of the positioning ring.
Specification
Steel - Blackened
Set screws - Steel, blackened, brass tip
