Please select desired options to reveal part number, price and availability
Options

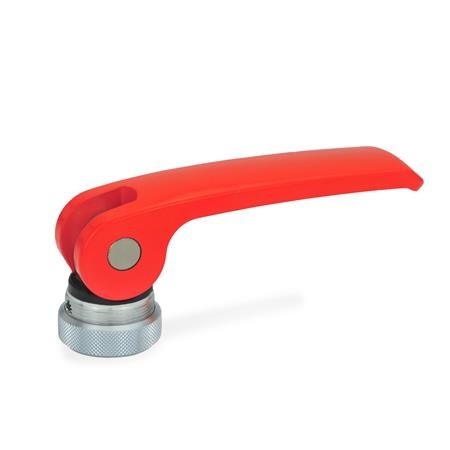

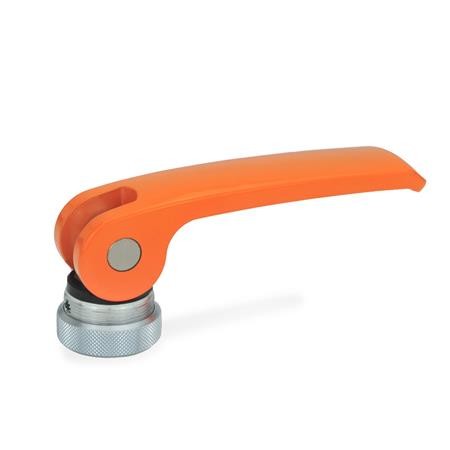

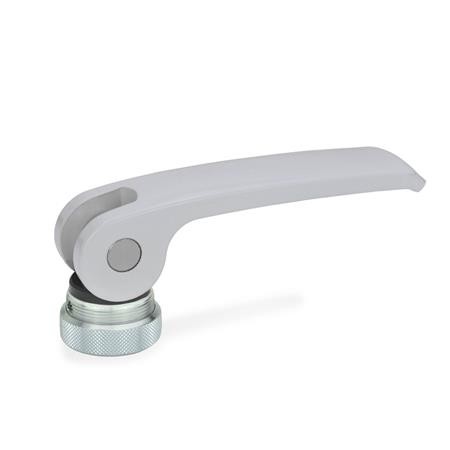

Type A - Plastic contact plate with setting nut.

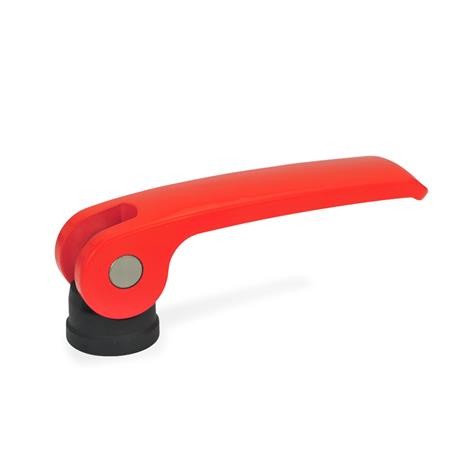

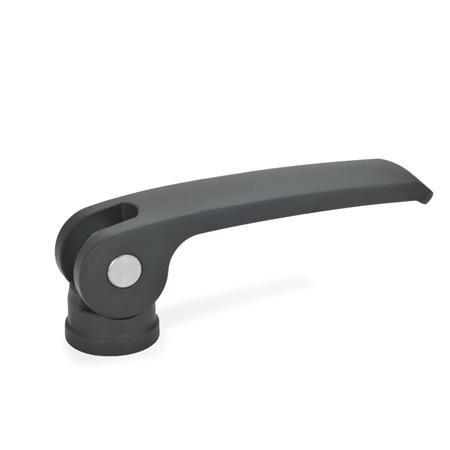

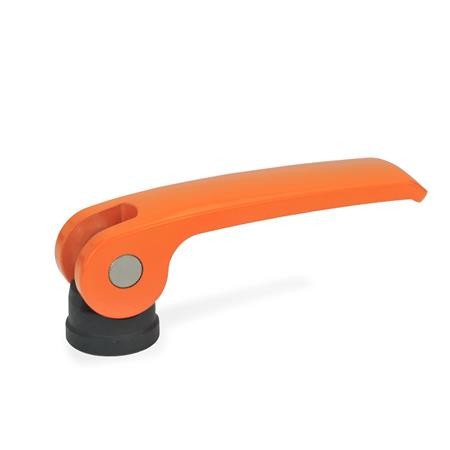

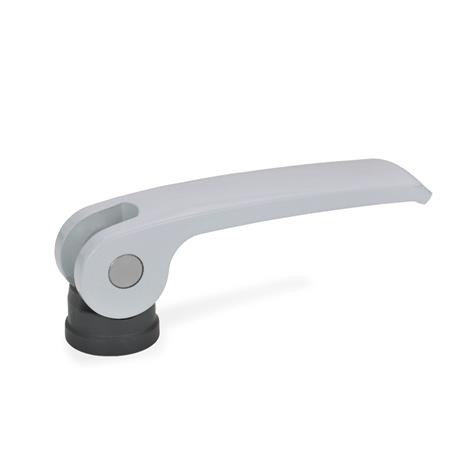

Type B - Plastic contact plate without setting nut.
Product Description
GN927 Clamping Lever With Eccentrical Cam
These clamping levers, GN 927, are used for rapid clamping and releasing operations. Unlike clamping operation via a thread, these levers allow torque-free clamping.
The lever has been designed to ensure that its movement cannot exceed the maximum clamping force.
There are no loose components since they are all assembled and mounted in their correct order.
Type A has additional benefits in that the distance between the eccentrical cam and the contact surface is adjustable by means of a fine pitch thread. This allows the maximum clamping force to be set by a simple adjustment. In addition this also allows the choice of the preferred lever position in relation to the clamping lever pin.
With these clamping levers, thrusts of up to 8 kN can be reached.
Specification
Lever - Zinc die casting, plastic coated (abrasion proof epoxy resin).
Colours available - Black, RAL 9005 B. Orange, RAL 2004 O. Red, RAL 3000 R. Silver, RAL 9006 S.
Axis, lag nut, setting nut - Steel ST, zinc plated, blue passivated.
Contact plate - Type A, Technopolymer (Polyacetal POM), glass fibre reinforced. Type B, Technopolymer (Polyamide PA), glass fibre reinforced.
CAD Viewer
Technical Data
