GN954.2 Position Indicator, 4 Digits, Digital Indication, Mechanical Counter, Stainless Steel Hollow Shaft
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type L - Numbers ascending anti-clockwise
Type R - Numbers ascending clockwise
Installation AN - Counter above on the chamfer
Installation AR - Counter below on the chamfer
Installation FN - Counter above in front
Installation FR - Counter below in front
Product Description

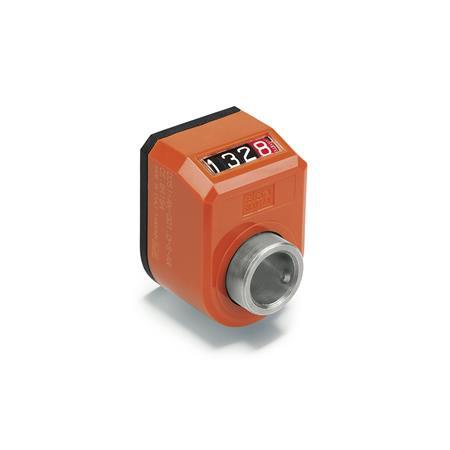

GN954.2 Position Indicator, 4 Digits, Digital Indication, Mechanical Counter, Stainless Steel Hollow Shaft
Position indicators GN 954.2 are fitted with a direct drive counter with four number digital read out. Both housing sections are ultrasonically welded, making the housing very tightly seated, stable and compact.
The foam rubber seal prevents the transmission of vibration to the counter and also acts as a seal.
Specification
- Housing - Plastic Technopolymer (Polyamide PA). Temperature resistant up to 80°C, oil and solvent resistant.
- Orange OR RAL 2004.
- Grey GR RAL 7035.
- Black/Grey SG RAL 7021
- Counter - 4 digits, figures in white, number wheels for integers in black, and for fractions in red with additional scale.
- Hollow shaft - Stainless steel, AISI303
- Grub screw DIN916 - With internal hexagon and with serrated point.
On Request
Other counter display
