GN957 Control Knob for Position Indicators, Aluminium

CloseNextPrevious



CloseNextPrevious

GN957: Control Knob



CloseNextPrevious

GN957: Control Knob



CAD Viewer Technical Data

Series Selector

Options

Type A - Shaft-Ø d2 < Bore-Ø d3

Type B - Shaft-Ø d2 = Bore-Ø d3

CAD Viewer Technical Data

Product Description

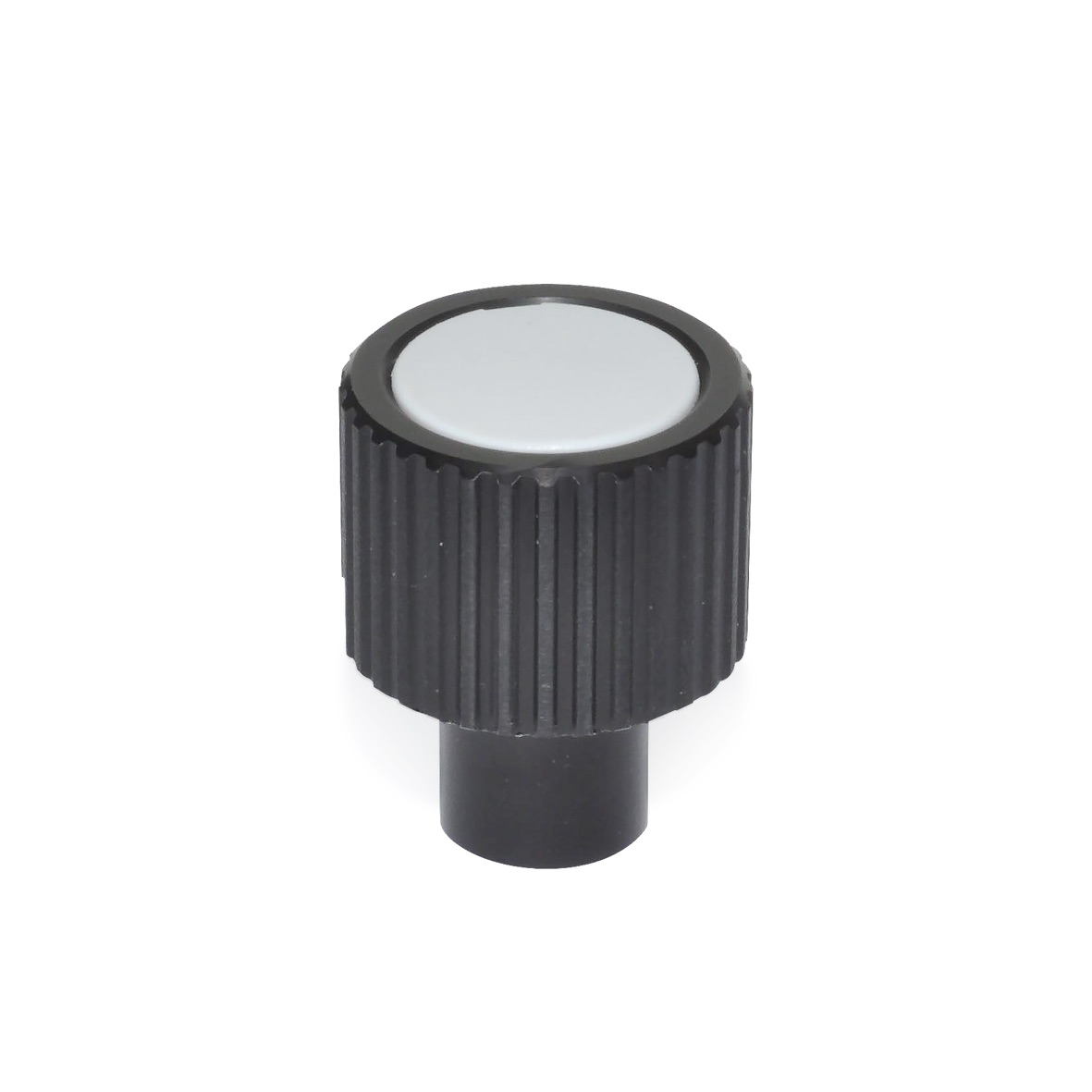

GN957 Control Knob for Position Indicators, Aluminium

This control knob is designed to fit our range of position indicators, allowing easy, precise & accurate manual control without the need for an adaptor bush as the design adapts to fit the diameter of the adjustment shaft.

Specification

Aluminium AL - Anodized, black.

Socket set screw DIN916 - Stainless steel NI, with internal hexagon and serrated point.

Hub cover - Plastic, light grey.
