GN953 (DD52R) Five Digit Direct Drive Digital Position Indicator

CAD Viewer Technical Data

Series Selector


Type L - Numbers ascending anti-clockwise

Type R - Numbers ascending clockwise

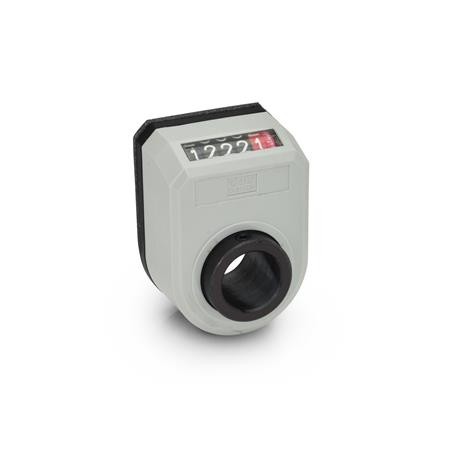

 Installation AN - Counter above on the chamfer

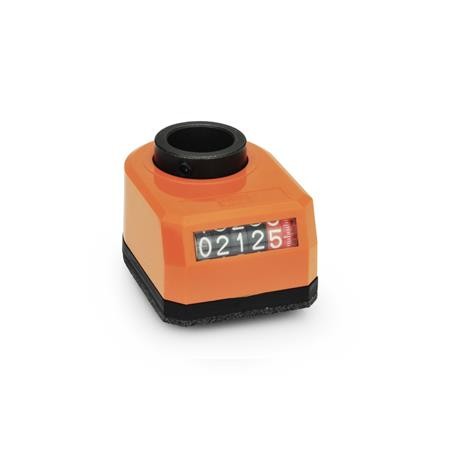

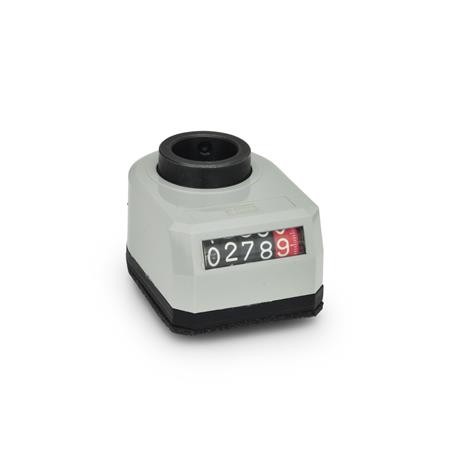

Installation AR - Counter below on the chamfer

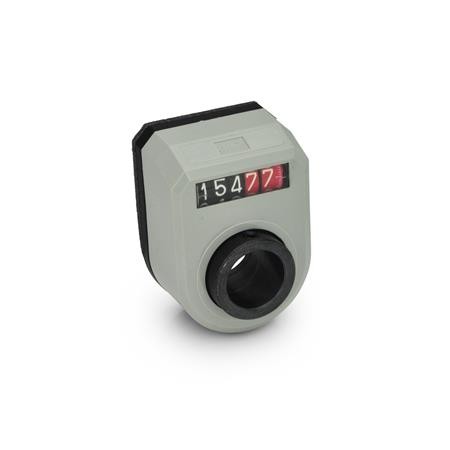

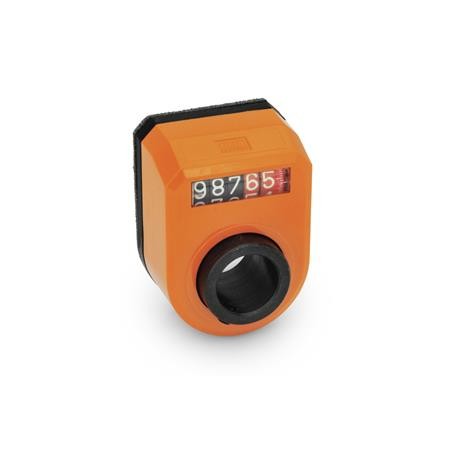

Installation FN - Counter above in front

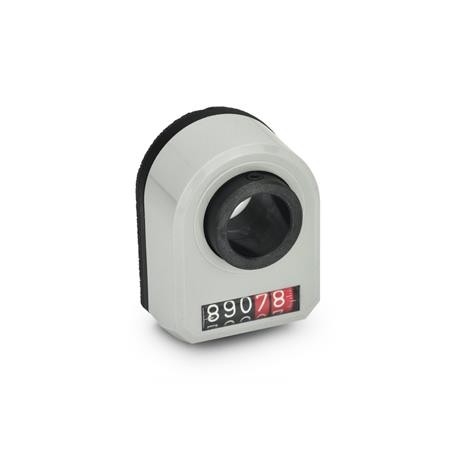

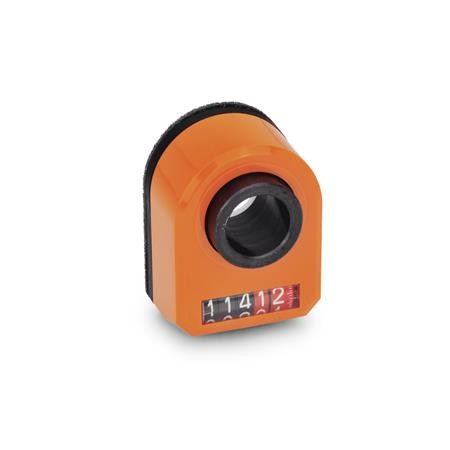

Installation FR - Counter below in front

CAD Viewer Technical Data

Product Description

GN953 (DD52R) Five Number Direct Drive Digital Position Indicator

These position indicators, GN 953, have a direct coupled drive with a digital indication.

The two body parts are ultrasonically welded, therefore the housing is particularly sturdy and compact. They are a cost effective choice.

The foam rubber seal prevents the transmission of vibration to the counter mechanism and also has sealing properties.

The read out window is cleverly designed. The numbers are easily legible and they are further enlarged by the magnifying effect of the safety sight glass.

The fractions are in red and the last decimal is shown in ten line segments. Five digits are shown.


Housing - Plastic (Polyamide PA). Orange RAL 2004 OR, Grey RAL 7035 GR. Temperature resistant up to 80 °C, oil and solvent resistant.

Numbers white - Number wheels for integers in black, for decimal numbers in red, with additional scale.

Hollow shaft - Steel ST, blackened.

Grub screw DIN916 - With internal hexagon and with serrated point.


Accessories include GN953.1 spacer plates, GN953.6 clamping plates and GN491.1 installation kits for use with linear actuators GN491 & GN492. When using installation kits, position indicators must be ordered so that the counter is aligned with the rising of the trapezoidal thread spindle.

On Request

Version with Stainless Steel hollow shaft, versions with other counter indication.
