GN955 Position Indicators, Digital Indication and Counter Mechanism

CloseNextPrevious



CloseNextPrevious

GN955: Position Indicator - Installation : AN
Colour: GR - Grey, RAL 7035



CloseNextPrevious

GN955: Position Indicator - Installation: AN
Colour: OR - Orange, RAL 2004



CloseNextPrevious

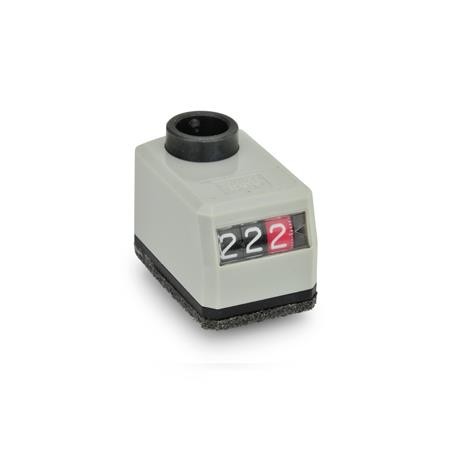

GN955: Position Indicator - Installation: AR
Colour: GR - Grey, RAL 7035



CloseNextPrevious

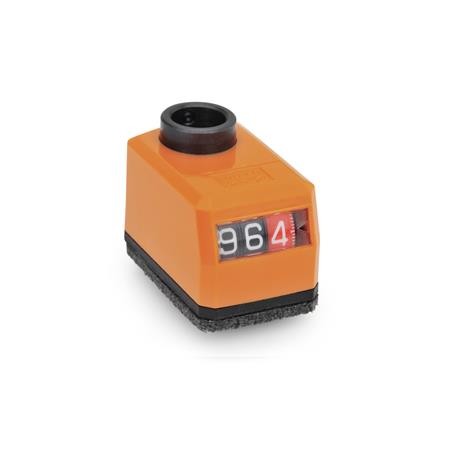

GN955: Position Indicator - Installation: AR
Colour: OR - Orange, RAL 2004



CloseNextPrevious

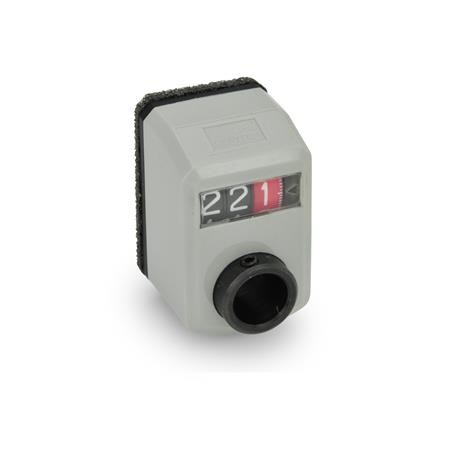

GN955: Position Indicator - Installation: FN
Colour: GR - Grey, RAL 7035



CloseNextPrevious

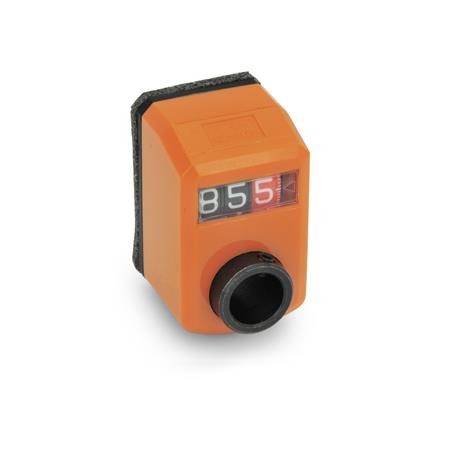

GN955: Position Indicator - Installation: FN
Colour: OR - Orange, RAL 2004



CloseNextPrevious

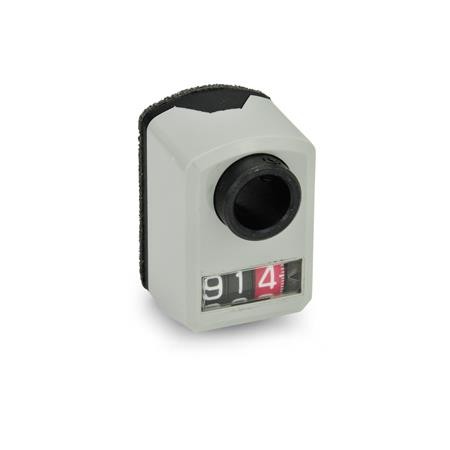

GN955: Position Indicator - Installation: FR
Colour: GR - Grey, RAL 7035



CloseNextPrevious

GN955: Position Indicator - Installation: FR
Colour: GR - Grey, RAL 7035



CAD Viewer Technical Data

Series Selector

Options

Type L - Numbers ascending anti-clockwise

Type R - Numbers ascending clockwise

 Installation (Front view) - AN on the chamfer, above

Installation (Front view) - AR on the chamfer, below

Installation (Front view) - FN in the front, above

Installation (Front view) - FR in the front, below

CAD Viewer Technical Data

Product Description

GN955 Position Indicators, Digital Indication and Counter Mechanism

Position indicators GN 955 are fitted with a direct drive counter with digital read out.

Both housing sections are ultrasonically welded. This makes the housing particularly compact and stable.

The foam rubber seal prevents the transmission of vibration to the counter and also acts as a seal.

The numbers are easily legible, and is assisted by the magnifying effect of the safety sight glass.

Specification

Housing - Plastic (Polyamide PA). Orange, RAL 2004, OR. Gray, RAL 7035, GR. Temperature resistant up to 80° C, oil and solvent proof.

Numbers - White

Number wheels - Integers black, decimals red

Hollow shaft - Steel ST, blackened.

O-ring sealing - Between hollow shaft and housing
