GN953
Five Digit Direct Drive Digital Position Indicator
Please select desired options to reveal part number, price and availability
Options

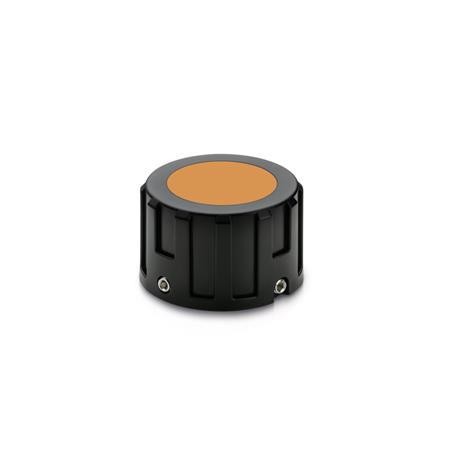

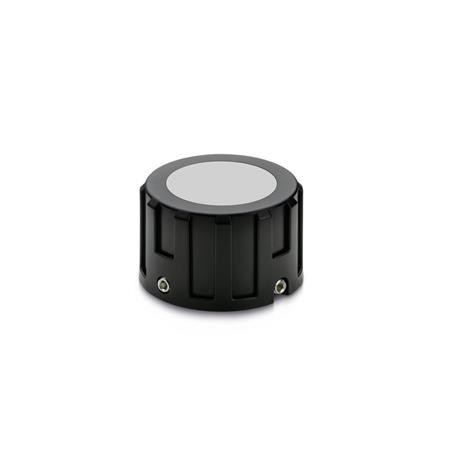

Type N - without lettering

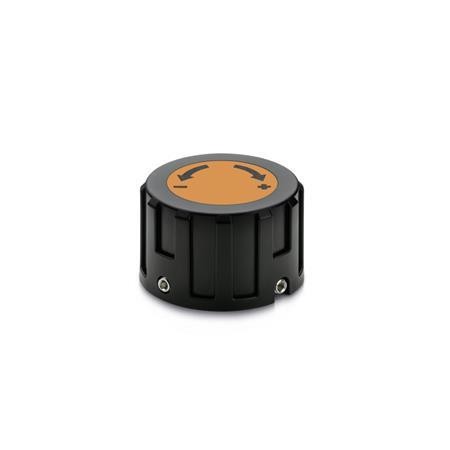

Type R - with lettering, with arrow, ascending clockwise

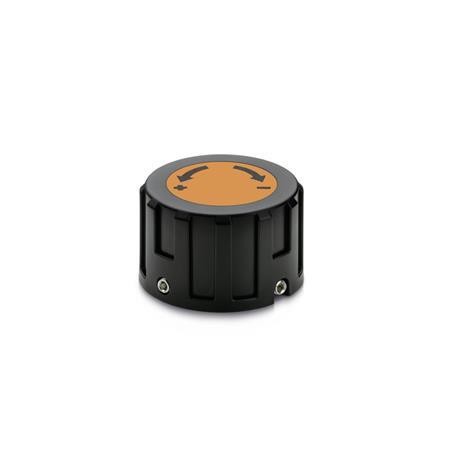

Type L - with lettering, with arrow, ascending counter-clockwise
Product Description
GN957.1 Control Knob for Position Indicators, Plastic
Control knobs GN 957.1 are used in conjunction with position indicators when a control knob is to be used for adjustment. The diameter d2 is coordinated to the hollow shaft diameter of the relevant position indicator.
The set screw of the position indicator must be replaced by a longer set screw enclosed with the control knob in order to clamp the adjusting shaft.
The control knob is then placed on the hollow shaft of the position indicator, with the newly inserted set screw in the recess of the control knob serving as a swivel limiting stop.
With the aid of the second set screw d4, the control knob then is axially fixed on the hollow shaft of the position indicator with the recommended torque MA.
Specification
