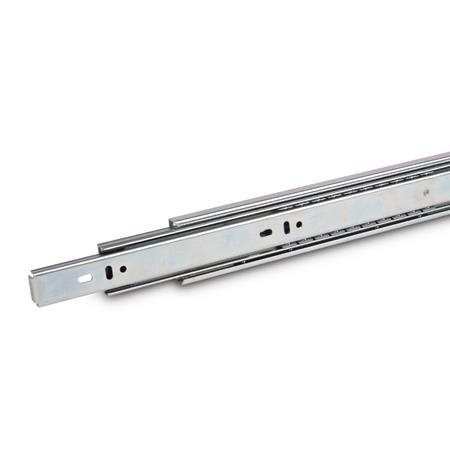

GN1414 Telescopic Slides, Full Extension and Dampened Self-Retracting Mechansim, Load Capacity up to 360N

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type F - with rubber stop, locking device in back, detach function

Identification No 1 - Fastening using through holes

Product Description

GN1414 Telescopic Slides, with Full Extension and Dampened Self Retracting Mechanism, Load capacity up to 360N

Telescopic slides GN 1414 are installed vertically and in pairs. The stroke reaches ≈ 100 % of the nominal length l1 (full extension). The rubber stops of type F dampen the impact of the slide in the end positions. This feature minimizes noise development and increases the lifespan. If larger static or dynamic loads occur in the direction of extension, they should be absorbed by external stop elements.

The telescopic slides are delivered in pairs. They can be installed on the extension on either the left or right side due to the mechanics. All mounting holes are easy to reach through auxiliary holes. Only the mounting holes are shown, but other production-related holes may be present.

Specification

• Slide profile - Steel, zinc plated, blue passivated ZB
• Bearings - Roller bearing steel, hardened
• Ball cage, outer slide - Plastic
• Ball cage, inner slide - Steel, zinc plated
• Rubber stop and detach function - Plastic / Elastomer
• Self-retracting mechanism, dampened - Steel / Plastic
• Operating temperature -20 °C to 100 °C

Other lengths and hole spacing. Other attachment options. Other surfaces.
