GN712.1 Cam Action Indexing Plunger, Plunger Retracted

images/300/GN712.1-Cam-action-indexing-plunger-Plunger-pin-retracted-sketch_H.png

Type A - without rest position, without lock nut

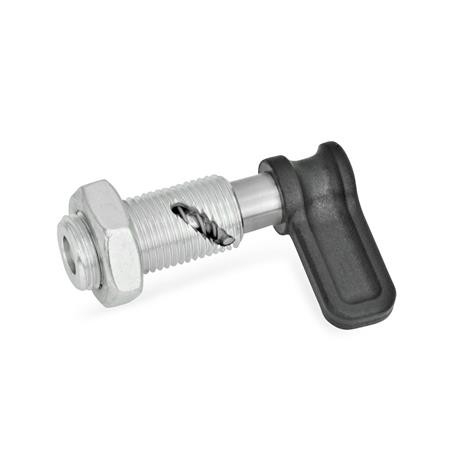

Type AK - without rest position, with lock nut

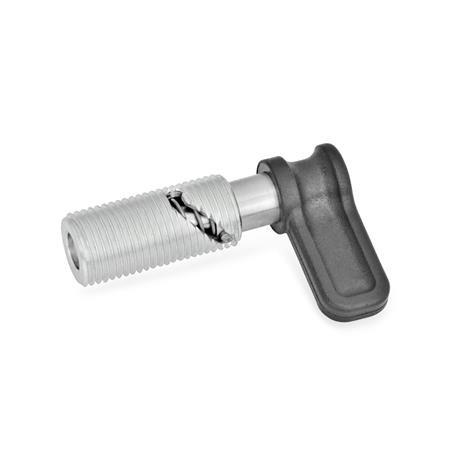

Type R - with rest position, without lock nut

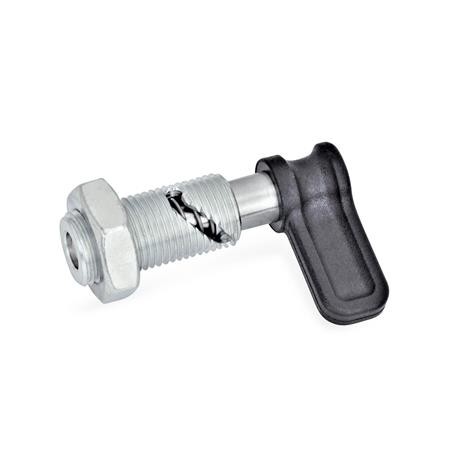

Type RK - with rest position, with lock nut

Type S - with safety-rest position, without lock nut

Type SK - with safety-rest position, with lock nut

Select Values to Buy:

Tech Spec:



GN712.1 Cam Action Indexing Plunger, Plunger Retracted

These cam action indexing plungers GN712.1 are used in applications where the plungeris only required to protrude occasionally.

When turning the cam by 90° resp. 120° degrees in a clockwise direction, the plunger is moved through a curved opening in the body. After that, the plunger is protruded.

Depending on the type, the plunger is either moved back by a spring in its original position (type A), is held in protruded position (type R), resp. or is secured against accidental operation (type S).

In order to move the plunger, safety version Type S requires an additional lifting of the bolt.

Specificaton

Steel - zinc plated, blue passivated

Plunger pin - stainless steel AISI 303

Bolt - plastic (Technopolymer), black, matt not removable

Stainless steel variant available on request.

RoHS compliant



Select / Deselect Visible Columns
Close
Hided1Show
Hided2Show
HideTypeShow
Hided3Show
Hidel1Show
Hidel2
Type A/AK
Type R/RK
Show
Hidel2
Type S/SK
Show
Hidel3Show
Hidel4Show
HideSpring load in
N initial
Show
HideSpring load in
N end
Show
HideMaterialShow
PartCoded1d2Typed3l1l2
Type A/AK
Type R/RK
l2
Type S/SK
l3l4Spring load in
N initial
Spring load in
N end
MaterialMass

GN712.1-6-M16X1,5-A6M16x1,5A1660863532716.5ST0.054
GN712.1-6-M16X1,5-AK6M16x1,5AK1660863532716.5ST0.08
GN712.1-6-M16X1,5-R6M16x1,5R1660863532716.5ST0.054
GN712.1-6-M16X1,5-RK6M16x1,5RK1660863532716.5ST0.06
GN712.1-6-M16X1,5-S6M16x1,5S1660863532716.5ST0.06
GN712.1-6-M16X1,5-SK6M16x1,5SK1660863532716.5ST0.07
GN712.1-8-M16X1,5-A8M16x1,5A1660863532716.5ST0.055
GN712.1-8-M16X1,5-AK8M16x1,5AK1660863532716.5ST0.06
GN712.1-8-M16X1,5-R8M16x1,5R1660863532716.5ST0.06
GN712.1-8-M16X1,5-RK8M16x1,5RK1660863532716.5ST0.073
GN712.1-8-M16X1,5-S8M16x1,5S1660863532716.5ST0.045
GN712.1-8-M16X1,5-SK8M16x1,5SK1660863532716.5ST0.075
