GN712 Cam Action Indexing Plunger, Plunger Protruded

CloseNextPrevious



CloseNextPrevious

GN712: Cam Action Indexing Plunger
Type: A



CloseNextPrevious

GN712: Cam Action Indexing Plunger
Type: AK



CloseNextPrevious

GN712: Cam Action Indexing Plunger
Type: R



CloseNextPrevious

GN712: Cam Action Indexing Plunger
Type: RK



CloseNextPrevious

GN712: Cam Action Indexing Plunger
Type: S



CloseNextPrevious

GN712: Cam Action Indexing Plunger
Type: SK



CAD Viewer Technical Data

Series Selector

Options

Type A - without rest position, without lock nut

Type AK - without rest position, with lock nut

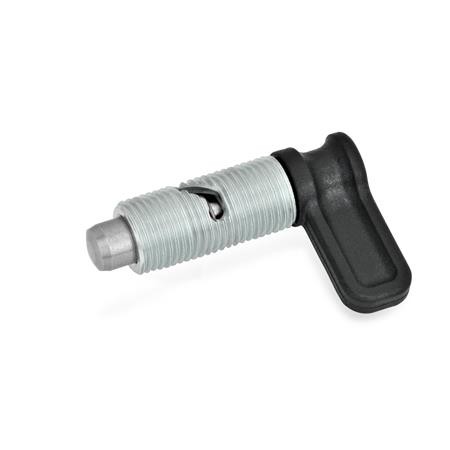

Type R - with rest position, without lock nut

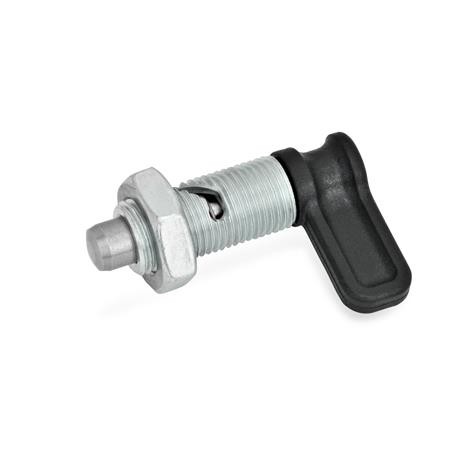

Type RK - with rest position, with lock nut

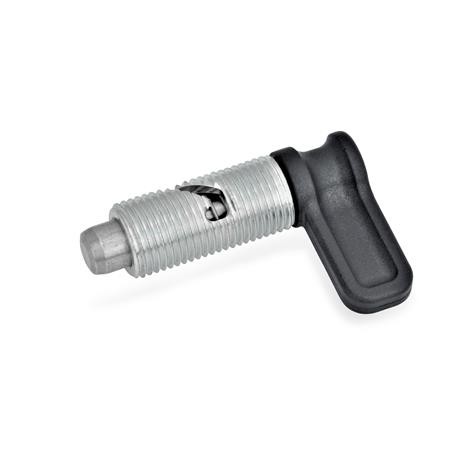

Type S - with safety rest position, without lock nut

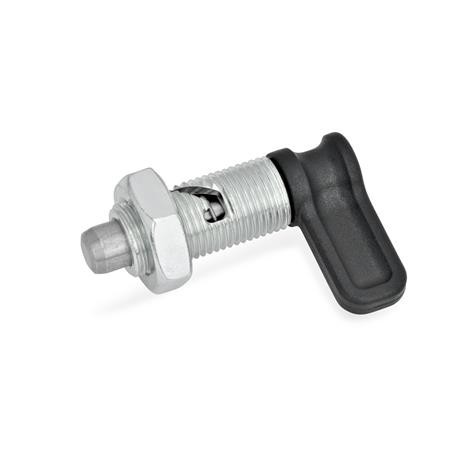

Type SK - with safety rest position, with lock nut

CAD Viewer Technical Data

Product Description

GN712 Cam Action Indexing Plungers, Plunger Protruded

These cam action indexing plungers, GN 712 are used in applications where the plunger needs to be able to be retracted, and not left protruding.

The plunger pin can be moved out and retracted by turning the latch anticlockwise by 90° or 120° over a guide cam. When turning the cam by 90° or 120° in anti-clockwise direction, the plunger is moved through a curved opening in the body. After that, the plunger is retracted.

Depending on the type, the plunger is moved back by a spring in its original position (type A), is held in retracted position (type R), or is secured against accidental operation (type S).

In order to move the plunger, safety version Type S requires an additional lifting of the bolt.

Specification

Steel ST, zinc plated, blue passivated.

Plunger - Stainless Steel NI, AISI 303

Bolt - Plastic (Polyamide PA) black, matt, not removable.

On Request

Stainless steel version
