GN715 Side Thrust Pins Press On Type elements clamping workpieces space saving

Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Spring Plungers
< Previous Product Next Product >

GN715 Side Thrust Pin, Press On Type, Aluminium with Plastic or Steel Pin

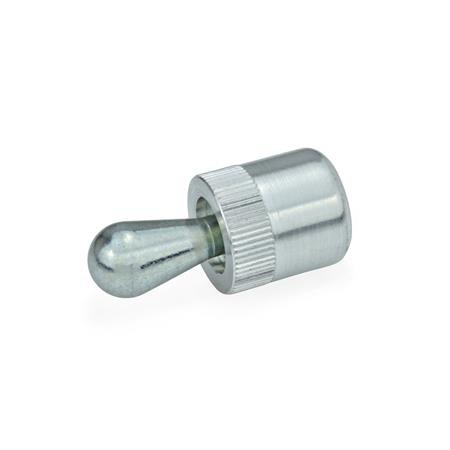

Type SA - thrust pin steel, without seal

Type KA - thrust pin technopolymer, without seal

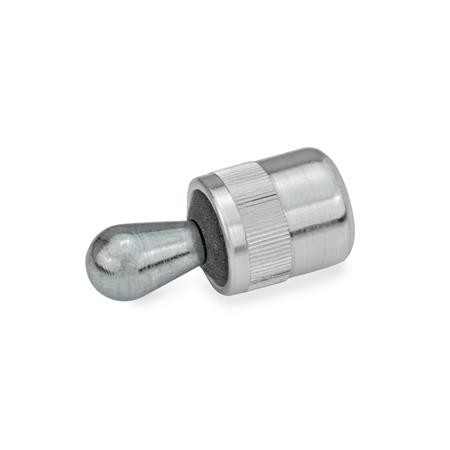

Type SB - thrust pin steel, with seal

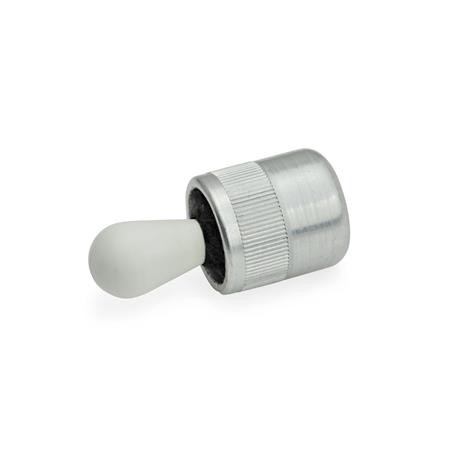

Type KB - thrust pin technopolymer, with seal

Select Values to Buy:

Tech Spec:



GN715 Side Thrust Pin, Press On Type, Aluminium with Plastic or Steel Pin

Spring loaded side thrust pins GN715 are versatile and practical elements for the holding, positioning and clamping of workpieces by applying lateral pressure.

They eliminate costly alternatives, are space saving and easy to install. The knurled body only requires a hole tolerance of H8.

Accessories

GN715.1 Mounting tool allows easy mounting of these side thrust pins.

GN715.2 Eccentric bush allows precise postioning and easy adjustment.

Specification

Body Aluminium - blank

Type SA / SB - Thrust pin steel, hardened, zinc plated, blue passivated.

Type KA / KB - Thrust pin plastic, Polyacetal (POM)

Thrust spring coding - Force as follows. Low thrust = grey, medium thrust = black, high thrust = silver

Seal rubber - NBR (Perbunan)

RoHS compliant

Select / Deselect Visible Columns
Close
HideMaterialShow
Hided1Show
HideSide Thrust
F0
in N
Thrust Pin
Type
SA / SB
Show
HideSide Thrust
F0
in N
Thrust Pin
Type
KA / KB
Show
Hidea1Show
Hidea2Show
Hided2Show
Hided3Show
Hideh Min.Show
Hidel1Show
Hidel2Show
Hidel3Show
Hidel4Show
HidewShow
Hidex1Show
Hidex2Show
HideCode No.
For
Mounting Tool
Show
PartCodeMateriald1Side Thrust
F0
in N
Thrust Pin
Type
SA / SB
Side Thrust
F0
in N
Thrust Pin
Type
KA / KB
a1a2d2d3h Min.l1l2l3l4wx1x2Code No.
For
Mounting Tool
Mass

GN715-3-10-SAAL3101.53.566774740.910.75GN715.1-3SA0.001
GN715-3-10-KAAL3101.53.566774740.910.75GN715.1-3KA0.001
GN715-3-10-SBAL3101.53.566774740.910.75GN715.1-3SB0.002
GN715-3-10-KBAL3101.53.566774740.910.75GN715.1-3KB0.001
GN715-3-20-SAAL3201.53.566774740.910.75GN715.1-3SA0.001
GN715-3-20-SBAL3201.53.566774740.910.75GN715.1-3SB0.001
GN715-3-40-SAAL3401.53.566774740.910.75GN715.1-3SA0.001
GN715-3-40-SBAL3401.53.566774740.910.75GN715.1-3SB0.001
GN715-5-20-SAAL5202.55.7101012116.711.561.61.71.3GN715.1-5.6SA0.003
GN715-5-20-KAAL5202.55.7101012116.711.561.61.71.3GN715.1-5.6KA0.001
GN715-5-20-SBAL5202.55.7101012116.711.561.61.71.3GN715.1-5.6SB0.003
GN715-5-20-KBAL5202.55.7101012116.711.561.61.71.3GN715.1-5.6KB0.001
GN715-5-50-SAAL5502.55.7101012116.711.561.61.71.3GN715.1-5.6SA0.003
GN715-5-50-SBAL5502.55.7101012116.711.561.61.71.3GN715.1-5.6SB0.003
GN715-5-100-SAAL51002.55.7101012116.711.561.61.71.3GN715.1-5.6SA0.003
GN715-5-100-SBAL51002.55.7101012116.711.561.61.71.3GN715.1-5.6SB0.003
GN715-6-40-SAAL64037.71010121110.711.5101.81.91.4GN715.1-5.6SA0.003
GN715-6-40-KAAL64037.71010121110.711.5101.81.91.4GN715.1-5.6KA0.001
GN715-6-40-SBAL64037.71010121110.711.5101.81.91.4GN715.1-5.6SB0.003
GN715-6-40-KBAL64037.71010121110.711.5101.81.91.4GN715.1-5.6KB0.002
GN715-6-75-SAAL67537.71010121110.711.5101.81.91.4GN715.1-5.6SA0.004
GN715-6-75-SBAL67537.71010121110.711.5101.81.91.4GN715.1-5.6SB0.004
GN715-6-150-SAAL615037.71010121110.711.5101.81.91.4GN715.1-5.6SA0.004
GN715-6-150-SBAL615037.71010121110.711.5101.81.91.4GN715.1-5.6SB0.004
GN715-8-50-SAAL85048.91212141313.914132.62.72.1GN715.1-8SA0.007
GN715-8-50-KAAL85048.91212141313.914132.62.72.1GN715.1-8KA0.003
GN715-8-50-SBAL85048.91212141313.914132.62.72.1GN715.1-8SB0.007
GN715-8-50-KBAL85048.91212141313.914132.62.72.1GN715.1-8KB0.003
GN715-8-100-SAAL810048.91212141313.914132.62.72.1GN715.1-8SA0.007
GN715-8-100-SBAL810048.91212141313.914132.62.72.1GN715.1-8SB0.007
GN715-8-200-SAAL820048.91212141313.914132.62.72.1GN715.1-8SA0.007
GN715-8-200-SBAL820048.91212141313.914132.62.72.1GN715.1-8SB0.007
GN715-10-100-SAAL10100510.71616181716.718163.23.42.7GN715.1-10SA0.015
GN715-10-100-KAAL10100510.71616181716.718163.23.42.7GN715.1-10KA0.006
GN715-10-100-SBAL10100510.71616181716.718163.23.42.7GN715.1-10SB0.015
GN715-10-100-KBAL10100510.71616181716.718163.23.42.7GN715.1-10KB0.007
GN715-10-200-SAAL10200510.71616181716.718163.23.42.7GN715.1-10SA0.015
GN715-10-200-SBAL10200510.71616181716.718163.23.42.7GN715.1-10SB0.014
GN715-10-300-SAAL10300510.71616181716.718163.23.42.7GN715.1-10SA0.016
GN715-10-300-SBAL10300510.71616181716.718163.23.42.7GN715.1-10SB0.016
