Product Description

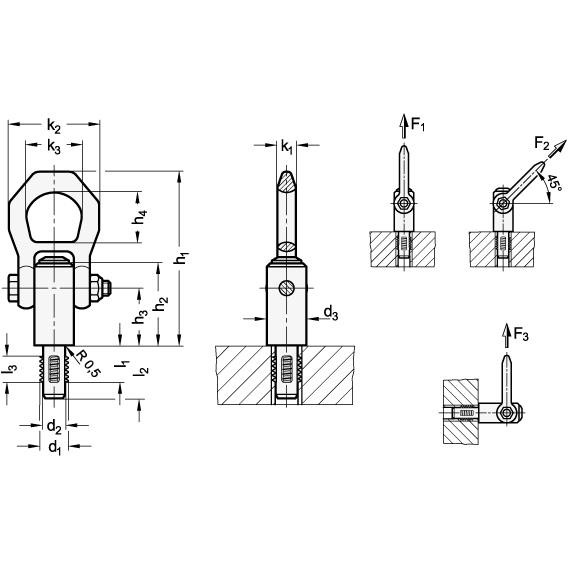

GN1133 Threaded Lifting Pin, Self Locking, Stainless Steel
Threaded lifting pins GN 1133 are support elements designed for quick, easy and above all safe use. Pressing the operating button unlocks the threaded segments, allowing the pin to be moved in or out of the mounting thread. This eliminates the time-consuming process of screwing in or out encountered with typical lifting gear, such as lifting eye bolts.
Assuming sufficient material strength, only true-to-gauge threaded holes are required to make use of the threaded lifting pins.
The shackle swivels by 180°, and a safety bar protects the button from unintentional operation.
For further application guidelines, see the operating instructions enclosed with every threaded lifting pin
Specification
Pin - Stainless steel, NI AISI 630, precipitation hardened
Shackle - Stainless steel AISI 316Ti
Threaded segments - Stainless steel AISI 630, precipitation hardened
Push button - Aluminum, orange anodized
Spring - Stainless steel
* With 5-fold anti-fracture safety
