GN256 Buffer, Silicone, Threaded Stud, Blunt Conical Shape

CloseNextPrevious



CloseNextPrevious

GN256: Silicone Buffer with Threaded Stud
Grey GR RAL7040



CloseNextPrevious

GN256: Silicone Buffer with Threaded Stud
Blue BL RAL5002



CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

Product Description

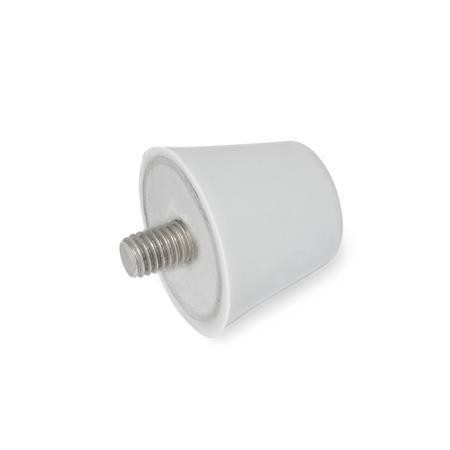

GN256 Buffer, Silicone, Threaded Stud, Blunt Conical Shape

Silicone buffers GN 256 are used as end stops or setup elements for machine and systems, e.g. for conveyors.

The silicone rubber used absorbs vibrations, has a dampening effect, is age-resistant and has an increased working temperature range. Thanks to the materials purity, these buffers may be used in the food, pharmaceutical and medical industries.

Specification

Silicone natural rubber - Elastosil® (MVQ), FDA compliant, vulcanized to the cover plate, temperature resistant up to 200 °C. Grey RAL 7040 GR. Blue RAL 5002 BL

Hardness shore A ±5 - medium 55

Cover plate, threaded studs - Stainless Steel AISI 304

On Request

Other colours and shore hardness (soft 40 & hard 70) - Minimum order quantity required.
