GN345.5 Levelling Foot, Stainless Steel Threaded Stud, Plastic Foot with Two Fixing Holes

CloseNextPrevious



CloseNextPrevious

GN345.5: Levelling Foot
Type: A - without Nut, without Rubber Pad



CloseNextPrevious

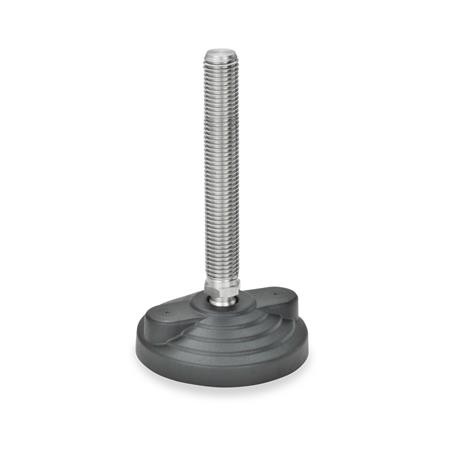

GN345.5: Levelling Foot
Type: AG - without Nut, with Rubber Pad



CloseNextPrevious

GN345.5 Levelling Foot
Type: B - with Nut, without Rubber Pad



CloseNextPrevious

GN345.5: Levelling Foot
Type: BG - with Nut, with Rubber Pad



CAD Viewer Technical Data

Series Selector

Options

Type A - Without nut, without rubber underlay

Type B - With nut, without rubber underlay

Type AG - Without nut, with rubber underlay

Type BG - With nut, with rubber underlay

CAD Viewer Technical Data

Product Description

GN345.5 Levelling Foot, Stainless Steel Threaded Stud, Plastic Foot with Two Fixing Holes)

Stainless steel levelling feet, GN 345.5, have a slightly stepped base which gives them a good looking, easy to clean shape.

These levelling feet are capable of withstanding high static loads through the use of a high density plastic material coupled with a design which distributes the load over a larger area.

The fixing holes are closed by a thin plastic layer, which may be easily punctured.

Levelling feet GN345.5 are supplied assembled, but can be disassembled.

Specification

Foot - Plastic ,Technopolymer (Polyamide PA) glass fibre reinforced, black, matt. Temperature resistant up to 100° C

Threaded stud - Stainless Steel NI, AISI 303

Hexagon nut ISO4032 - Stainless Steel NI, AISI 304

Rubber underlay - NBR, 70 Shore A, black

The values given in the table regarding the static load capacity serve as a guide line only and if these are exceeded serious permanent deformation or breakage of the plastic socket could occur.The values have been arrived at by a series of tests whereby a limited number of levelling feet were subjected for a limited time to a vertical static load to the feet. The details relating to the load bearing capacity are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
