GN741 Threaded Plug, Aluminium, blank

CloseNextPrevious



CloseNextPrevious

GN741: Threaded Plug
Type: AS - Id. no.: 2



CloseNextPrevious

GN741: Threaded Plug
Type: AS - Id. no.: 1



CloseNextPrevious

GN741: Threaded Plug
Type: ES - Id. no.: 1



CloseNextPrevious

GN741: Threaded Plug
Type: ES - Id. no.: 2



CloseNextPrevious

GN741: Threaded Plug
Type: OS - Id. no.: 1



CloseNextPrevious

GN741: Threaded Plug
Type: OS - Id. no.: 2



CAD Viewer Technical Data

Series Selector

Options

Type OS - neutral coding

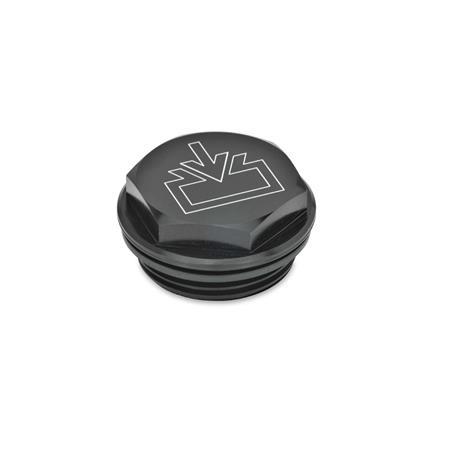

Type ES - with DIN refill symbol

Type AS - with DIN drain symbol

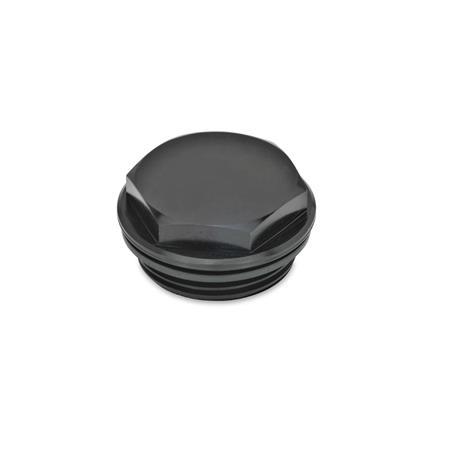

Identification No.1 - without vent drilling

Identification No.2 - with vent drilling

CAD Viewer Technical Data

Product Description

GN741 Threaded Plug, Aluminium

Threaded plugs GN 741 are fitted with outside diameter d1 to suit screw holes with BSP threads to DIN3852.

The seal is bedded into a undercut groove which prevents it from dropping out and at the same time stops it from being extruded when tightening the cap. The seal can therefore be kept fairly soft which will improve sealing on uneven surfaces.

Specification

Aluminium AL, fine turned.

Type OS, ES, AS - blank.

Symbols laser engraved

Temperature resistant up to 100 °C

Sealing ring - rubber, NBR (Perbunan)

On Request

With dipstick
