GN742.5 Threaded Plug, Stainless Steel AISI 316L

Close Next Previous

Close Next Previous

GN742.5:Threaded Plugs Stainless Steel
Type A

Close Next Previous

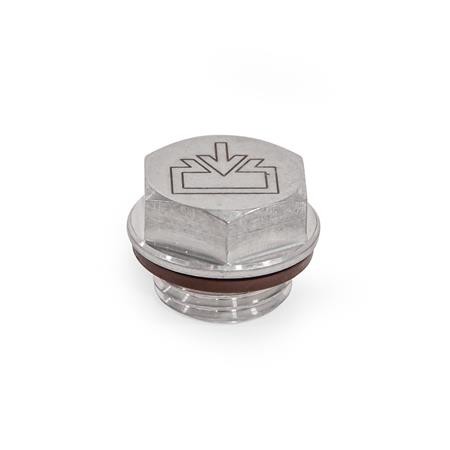

GN742.5:Threaded Plugs Stainless Steel
Type E

Close Next Previous

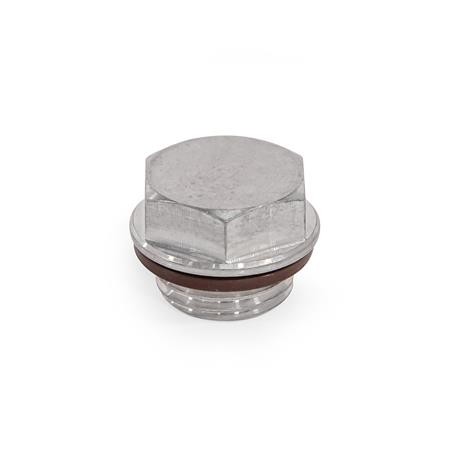

GN742.5:Threaded Plugs Stainless Steel
Type O

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - with DIN drain symbol

Type E - with DIN refill symbol

Type O - neutral coding

Identification 1 - without vent drilling

Product Description

GN742.5 Threaded Plug, Stainless Steel, AISI 316L

Stainless steel threaded plugs GN 742.5 is suitable for use in particularly aggressive environments thanks to the material used. They can be used for blanking, filling or draining and are available with the DIN symbols as shown.

The seal is embedded in a radial recess and thus cannot be lost, squeezed out or overloaded during tightening.

The outer diameter d₁ of these GN742.5 stainless steel threaded plugs is matched to screw holes for metric or pipe fittings with BSP threads according to DIN 3852.

Specification

Stainless steel AISI 316L, precision turned, plain finish

On Request

Other thread sizes

With dipstick

With acrylonitrile butadiene rubber (NBR) seal GN741.5
