GN2283 Screw On Levels for Mounting with Screws

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Sensitivity - 6 Angle minutes, bubble moves by 2mm.

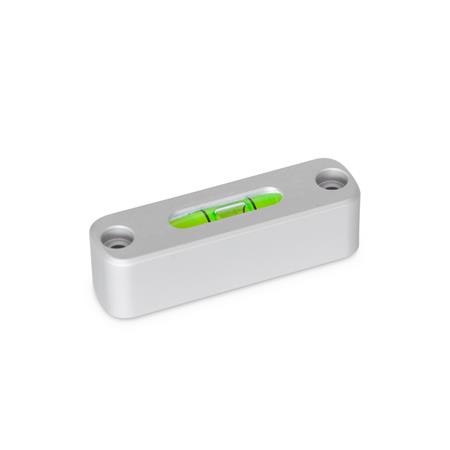

Sensitivity - 50 Angle minutes, bubble moves by 2mm.

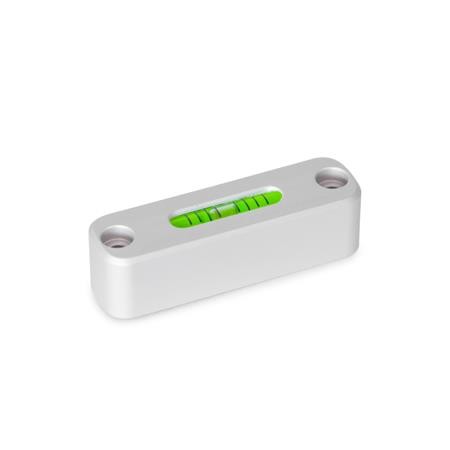

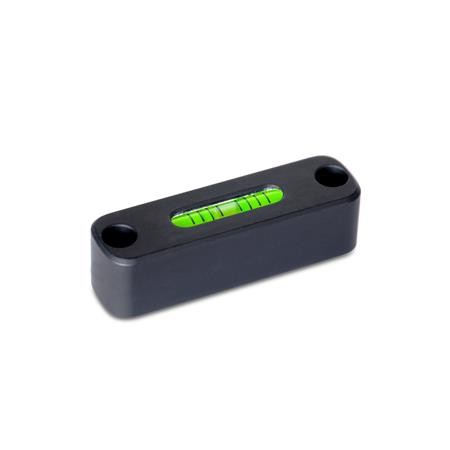

Type - AV aligned, installation from front side (not adjustable)

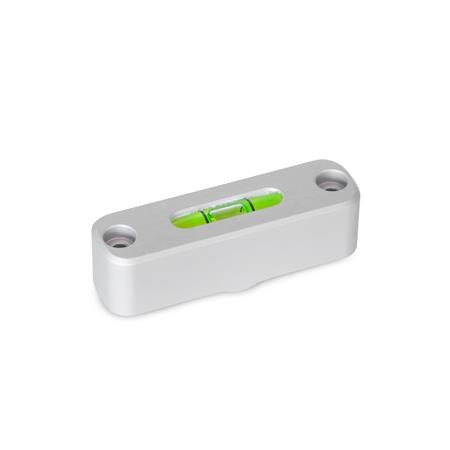

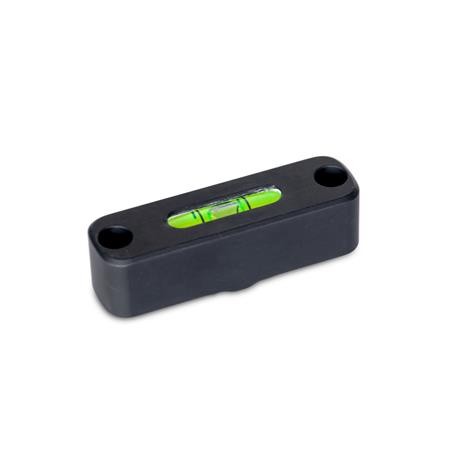

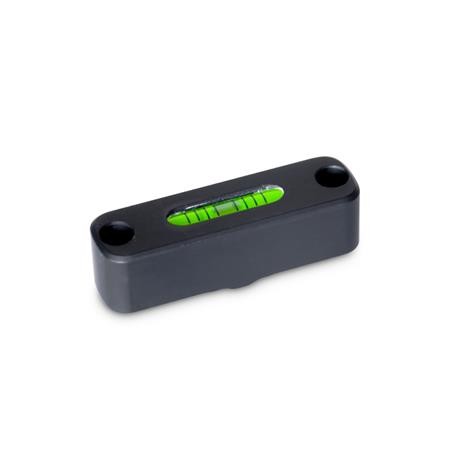

Type - JV adjustable, installation from front side

CAD Viewer Technical Data

Product Description

Screw-on levels GN2283 are used to check the horizontal position of jigs, machines, devices, appliances and instruments.

The spirit levels of type AV are aligned in relation to the reference surface so that the bubble is centered in the middle of the marking lines once the horizontal position of the contact surface is reached.

The spirit levels of type JV are aligned during installation using the fastening holes. An alignment cam on the bottom serves as a pivot point. With careful tightening, it is possible to achieve an alignment that places the bubble between the middle marking lines.

Specification

Housing - Aluminum, anodized, natural colour ALN, anodized black ALS

Spirit level element - Glass body

Filling - green-transparent G

Casting compound - mineral-based

On Request

Filling, colourless-transparent

Other sensitivities
