GN436.1 Control Knob, Stainless Steel

CloseNextPrevious



CloseNextPrevious

GN436.1: Control Knob
Type: S - with Standard Scale 0...9



CloseNextPrevious

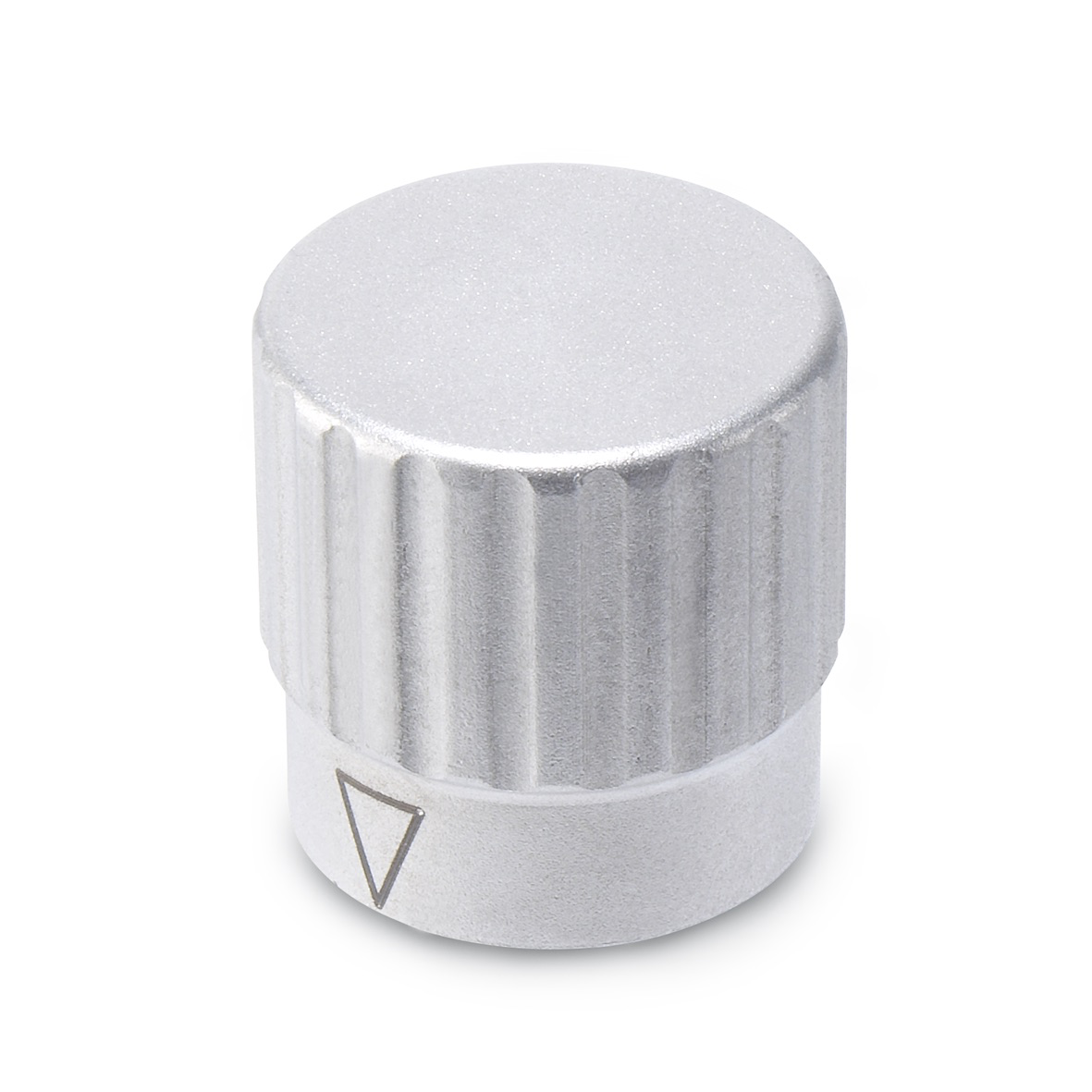

GN436.1: Control Knob
Type: A - with Arrow



CloseNextPrevious

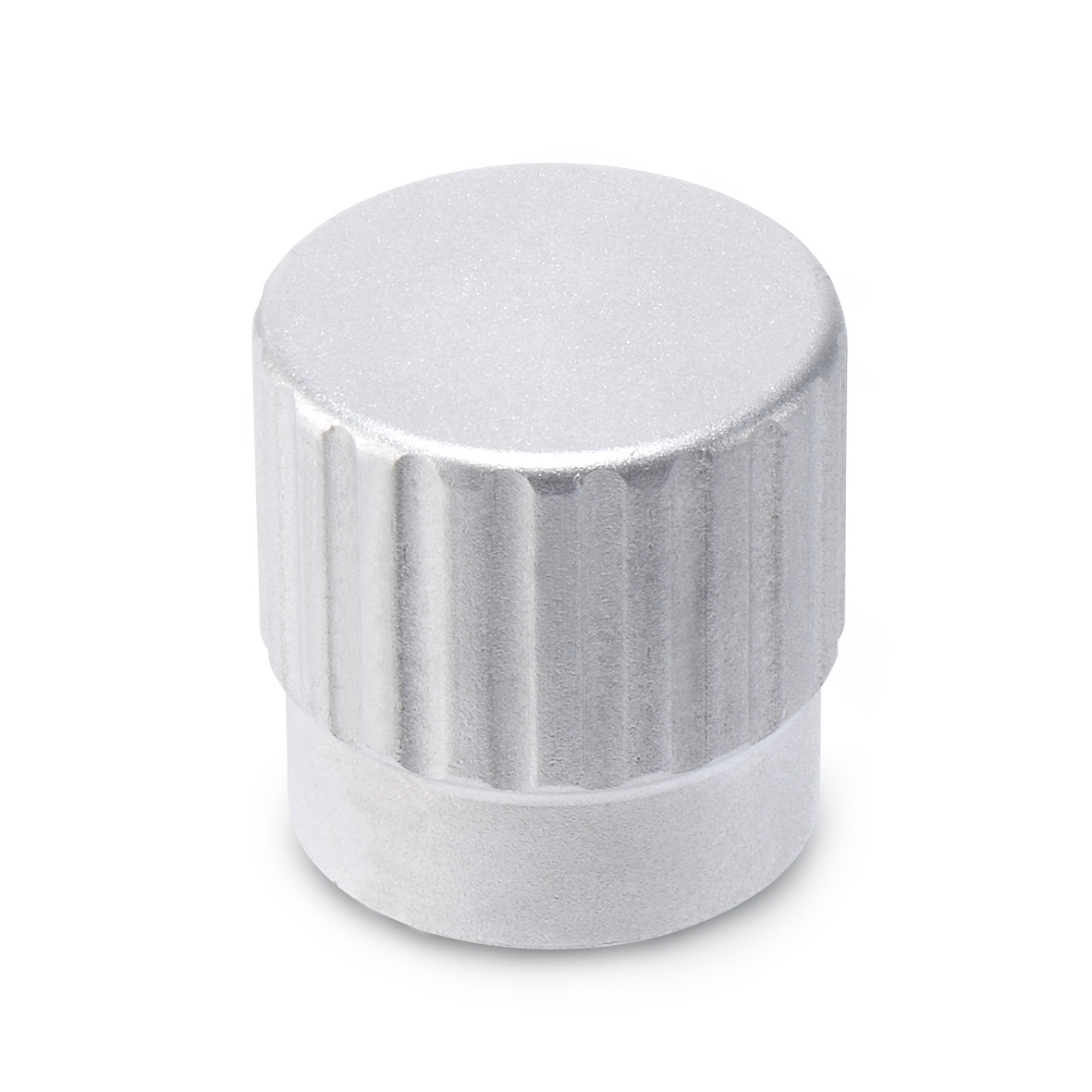

GN436.1: Control Knob
Type: B - Neutral



CAD Viewer Technical Data

Series Selector

Options

Type A - with arrow

Type B - neutral, without marking or scale

Type S - with scale 0 - 9, 20 graduations

CAD Viewer Technical Data

Product Description

GN 436.1 Control Knob, Stainless Steel.

These control knobs, GN436.1, are an accurate means of making fine, precise position adjustments. Being made from stainless steel, they are ideal for clean room environments, such as found in the food & medical industries.

The scale or marking arrow is indelibly mmarked, abrasion-resistant and easy to read. In addition to the standard marking (type S) they can be supplied with any type of graduation on request. Please see further details on Custom Graduations for designs and prices. Please note: An additional surcharge applies for custom graduation. If this is not chosen on the original order, this will be invoiced separately.

Specification

Stainless Steel - ASI 304, matt shot blasted MT.

Scale (type S) and arrow (Type A) - engraved with laser precision

Stainless Steel Grub screw DIN 916  - with internal hexagon and with serrated point
