S04: Side Lock

Choose your Part

Please select desired options to reveal part number, price and availability

Product Description

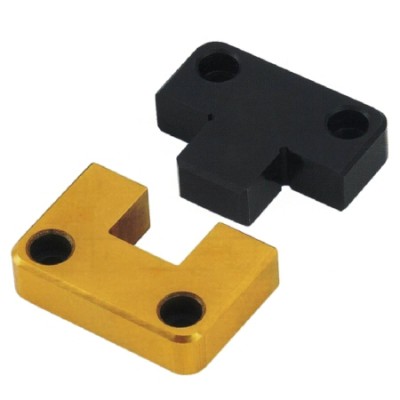

S04 Side Lock, Titanium Coated

Best located in pockets on the side of the cavity plate, these side locks locate between 10 and 30mm before the split faces meet and are ideal for applications where there are fragile ribs in the mould.

Specifcation

Material: Tool Steel

Male = Hardness: HRC58+/-2 Black Oxidised

Female = Hardness: HRC80+/-2 Titanium Nitride Coating

Available in imperial sizes
