GN408.1 Positioning and Supporting Element, Threaded Stud, Steel

CloseNextPrevious



CloseNextPrevious

GN408.1: Positioning & Supporting Element
Type: K - Spherical contact face, turned



CloseNextPrevious

GN408.1: Positioning & Supporting Element
Type: G - Smooth contact face, ground



CloseNextPrevious

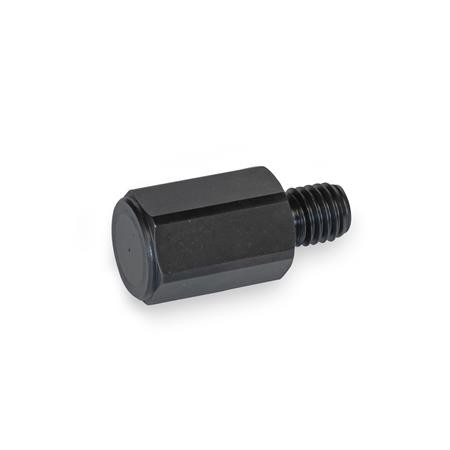

GN408.1: Positioning & Supporting Element
Type: B - Smooth contact face, turned



CAD Viewer Technical Data

Series Selector

Options

Type B - Smooth contact face, turned

Type G - Smooth contact face, ground

Type - Spherical contact face, turned

CAD Viewer Technical Data

Product Description

GN408.1 Positioning and Supporting Element, Threaded Stud, Steel

Positioning and support elements GN 408.1 are used in device and tool construction for mounting and positioning workpieces. They can also be used as stops, thrust pieces or feet.

Type G is especially suited for applications in which the height of the support surfaces must be as precise as possible. On uneven or inclined surfaces, such as unmachined parts, the curved support surface of type K offers particular advantages.

Specification

Steel ST - case hardened, blackened.

Type B / K - Contact face, turned

Type G - Contact face, ground
