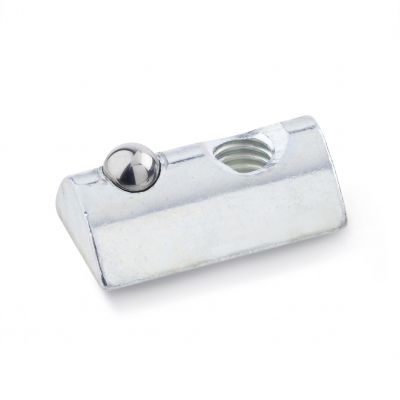

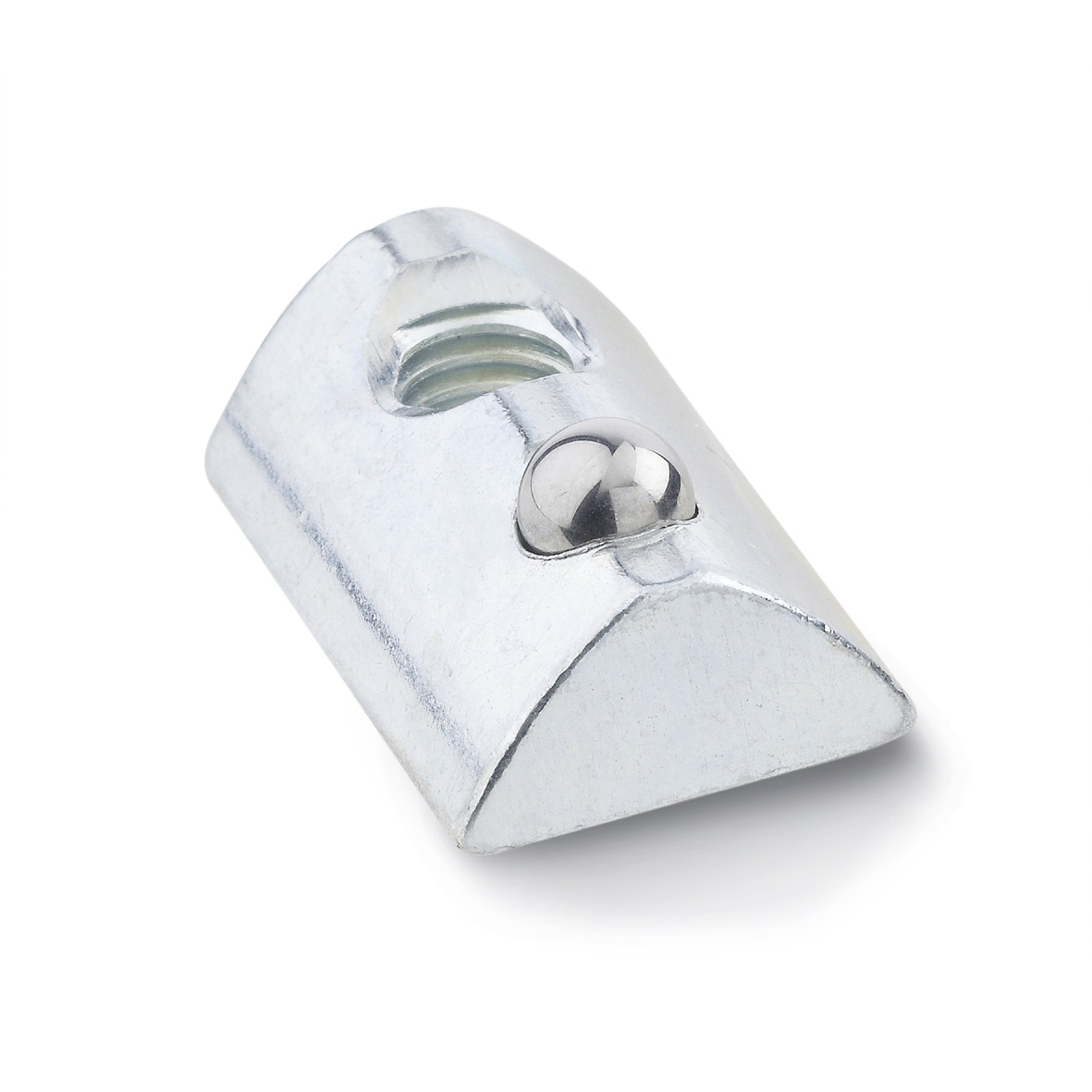

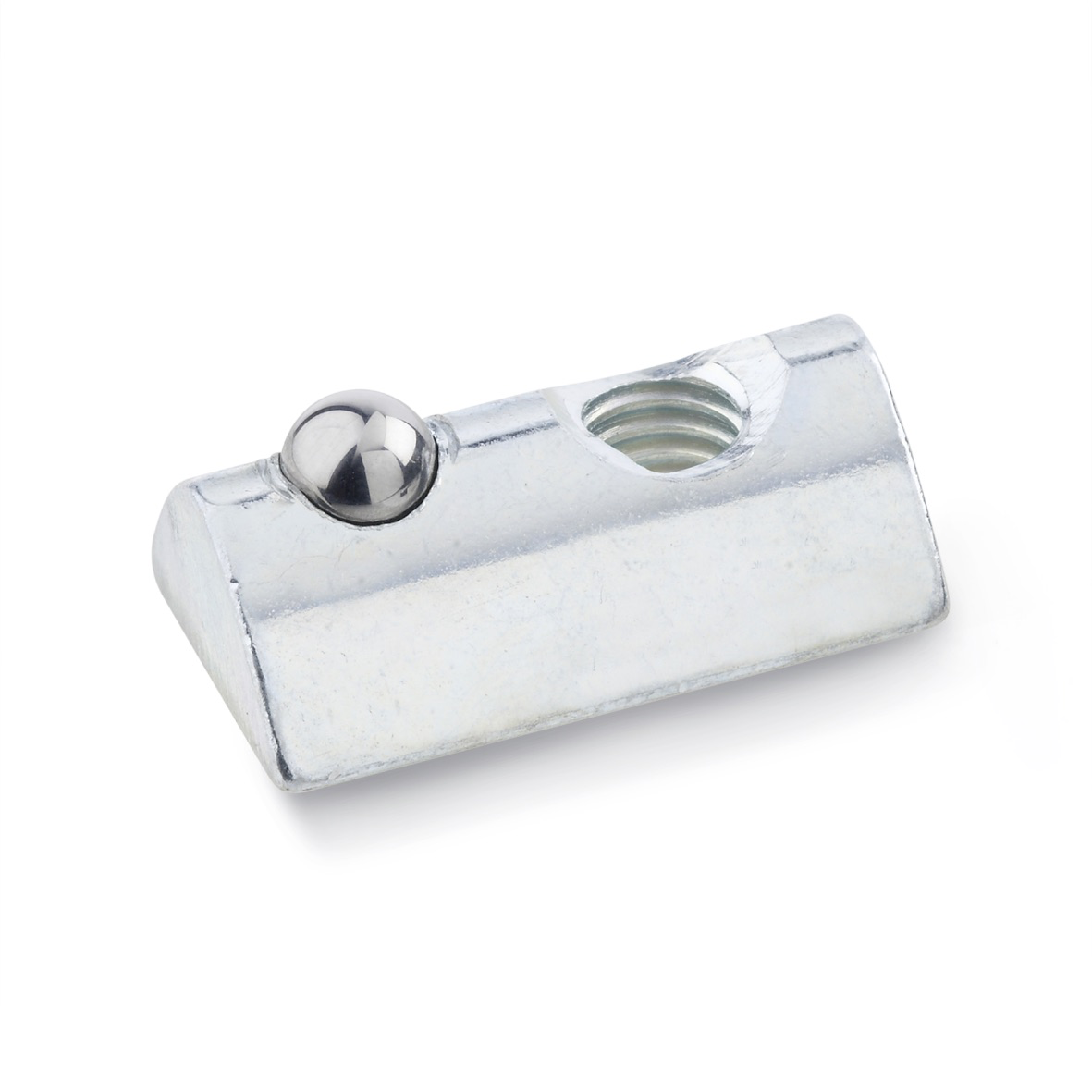

GN506.1 T Nut, without Guide Step, Accessory for Extrusion Systems

These T Nuts without guide step can be turned into position, i.e. they can be inserted at any point along the slot.

The spring loaded ball will prevent an unwanted movement of the nut in the slot which can easily occur on a bed with the T-slots in a vertical position.

Suitable for profile systems, as an example they can be used to fit hinges to commercially available extrusion rails.


Steel, zinc plated, blue passivated.

Ball - Stainless Steel.

Spring - Stainless Steel
