GN6311.1 Thrust Pads, Optional Plastic Cap, Stainless Steel

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

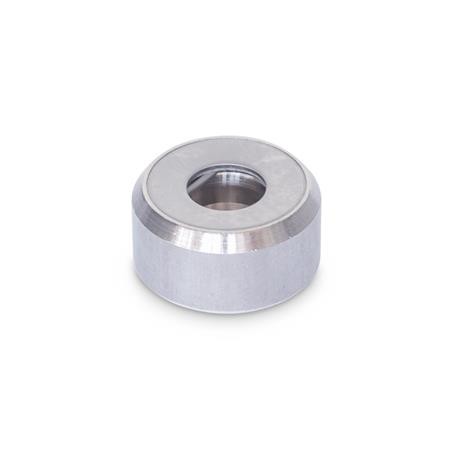

Type A - without plastic cap

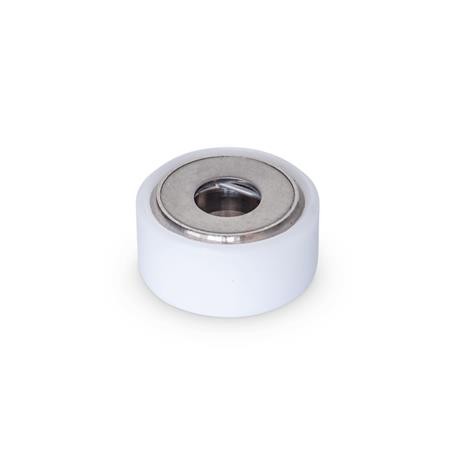

Type K - with plastic cap

Type P - thrust pad surface with prism, without plastic cap

CAD Viewer Technical Data

Product Description

GN6311.1 Thrust Pads, Optional Plastic Cap, Stainless Steel

Stainless steel thrust pads GN 6311.1 are used in conjunction with grub screws fitted with thrust point (grub screws DIN 6332, tommy screws DIN 6304 and DIN 6306) to transmit clamping force. They align themselves on uneven and non-parallel surfaces and thus prevent the rotating force being transmitted to the workpiece.

The plastic cap (type K) prevents damage to delicate workpieces.

The unique shape of the retaining spring permits easy insertion and removal of grub screws into or from the thrust pad.

Stainless steel thrust pads GN6311.1 can be used in conjunction with DIN 6332 grub screws as levelling feet.

Specification

Stainless Steel NI AISI 304

Retaining spring - Stainless Steel AISI 301

Plastic cap (Polyacetal POM) - Natural color, temperature resistant up to 100 °C
