GN6322 Workholding Bolt, with Ball Type Shoulder, Steel

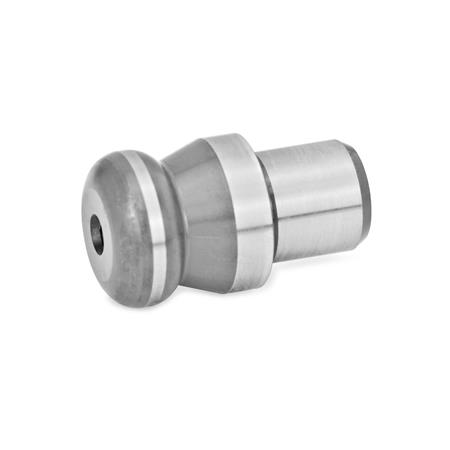

Type B - high, cylindrical

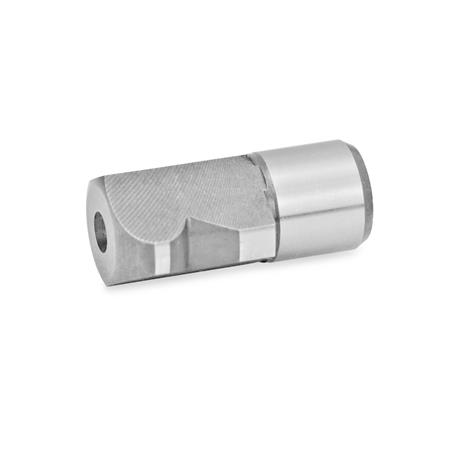

Type C - high, flattened

Select Values to Buy:

Tech Spec:



GN 6322 Workholding Bolt, with Ball Type Shoulder, Steel

Workholding bolts GN6322 are used for positioning in bores, with the ball-type shoulder facilitating the insertion into the bore.

The flattened design (Type C) helps to compensate tolerances in the spacing of two bores. Another application of this design is to fix parts to be positioned in one direction only.

Specification

Steel, hardened

RoHS compliant

Select / Deselect Visible Columns
PartCoded1d2Typed3d4h1h2lstrMaterialMass

GN6322-10-7-B107B10M3102.572.562.5ST0.007
GN6322-10-7-C107C10M3102.572.562.5ST0.005
GN6322-12-8-B128B12M412382.583ST0.011
GN6322-12-8-C128C12M412382.583ST0.008
GN6322-16-12-B1612B16M5164124.3104ST0.03
GN6322-16-12-C1612C16M5164124.3104ST0.024
GN6322-20-14-B2014B20M5205145105ST0.057
GN6322-20-14-C2014C20M5205145105ST0.045
GN6322-22-16-B2216B22M5225.5165105.5ST0.079
GN6322-22-16-C2216C22M5225.5165105.5ST0.062
GN6322-25-18-B2518B25M5256185.6106ST0.116
GN6322-25-18-C2518C25M5256185.6106ST0.09
