GN868.1
Static Holder, for Clamping Jaws
Please select desired options to reveal part number, price and availability
Options
Type R - Clamping jaws at right angle to clamping arm

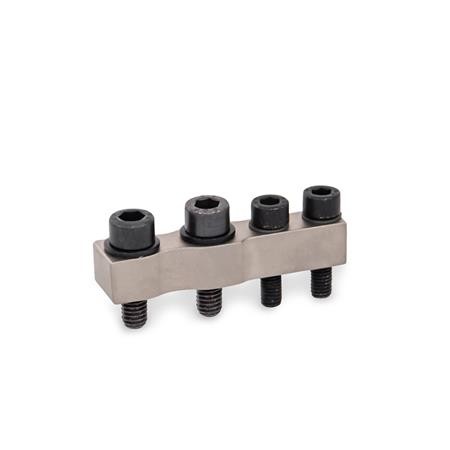

Type P - Clamping jaws parallel to clamping arm
Product Description
GN868 Holder for Clamping Jaws, Nickel Plated, Precise Positioning
These clamping jaw holders, GN 868, have been designed as an accessory for use with power clamps GN864, GN865 and GN866.
Holders for clamping jaws are equally precisely positioned on the clamping arm as are the clamping jaws GN872 on the holders themselves.
When using type P, power clamps may be operated at up to a maximum of 6 bar.
Cap screws and centering guide bushing accessories are included.
Specification
Steel C 45, chemically nickel plated NC
Socket cap screws DIN 912
Centering guide bushings - Steel, blackened
