Type A - without sealing.

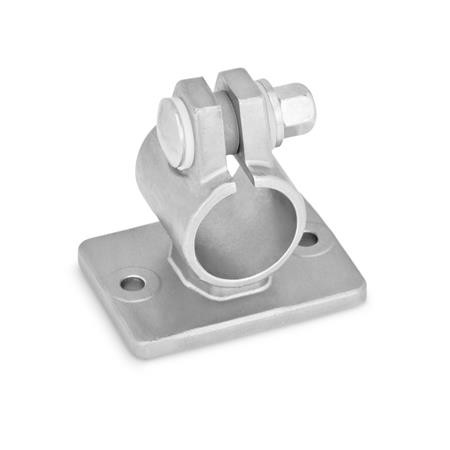

Type B - with sealing.
GN146.6 Flanged Connector Clamp, Stainless Steel, with 2 Mounting Holes
These connector clamps are an essential element when building jigs, fixtures, and operating systems. Being manufactured from stainless steel, they are ideal for use in clean room environments, such as in the food and medical industries.
The shape of the clamping screws / nuts prevents deterioration due to trapped water. The design with a seal (Type B) also seals bore holes and threads. The clamping bores of these flanged connector clamps are mechanically machined and designed for use with construction tubing GN990. Two hole mounting.
Stainless Steel AISI CF-8, matt shot-blasted.
Clamping bores - mechanically machined.
Carriage bolt DIN603 - stainless steel A2
Cap nuts DIN917 - stainless steel A2
Washers - Plastic (Polyacetal POM)
Edge ring - Silicon, 40 - 60 Shore A
