GN194 T-Angle Connector Clamp, Aluminium, Multi Part Assembly

CloseNextPrevious



CloseNextPrevious

GN194: T-Angle Connector Clamp
Bore d1: B40 - Finish: SW - Id. No.: 2



CloseNextPrevious

GN194: T-Angle Connector Clamp

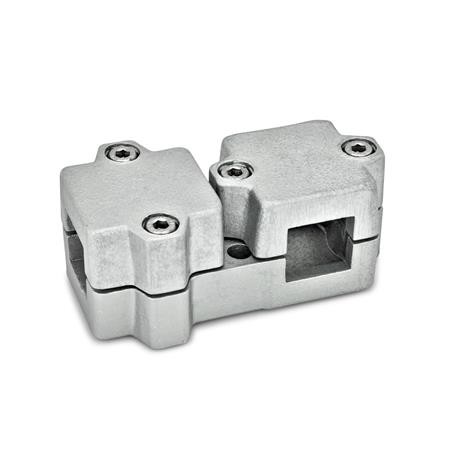

Square s1: V40 - Finish: BL - Id. No.: 2



CloseNextPrevious

GN194: T-Angle Connector Clamp

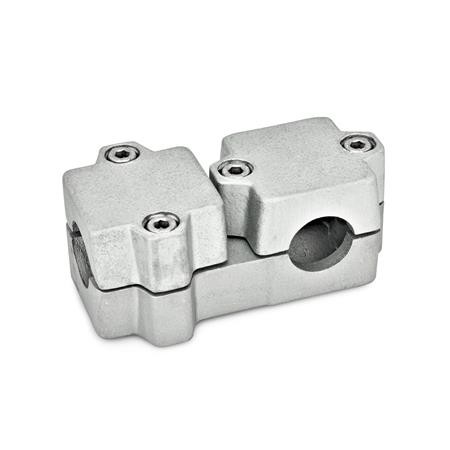

Bore d1: B40 - Finish: BL - Id. No.: 2



CloseNextPrevious

GN194: T-Angle Connector Clamp

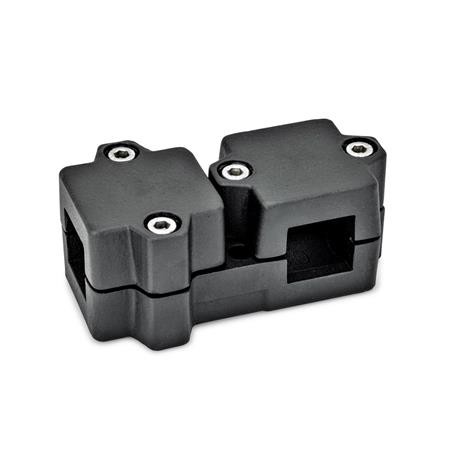

Square s1: V40 - Finish: SW - Id. No.: 2



CAD Viewer Technical Data

Series Selector

Options

Identifcation No. 2 - with 4 clamping screws DIN912, stainless steel

Bore Code d1/d2 - Round B

Bore Code s1/s2 - Square V

CAD Viewer Technical Data

Product Description

GN194 T-Angle Connector Clamp, Aluminium, Multi Part Assembly

The clamping bores of these T-angle connector clamps, GN 194, are not machined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively. The versions with square bores are also suitable for profile systems.

Round and square bores of the same nominal size can be assembled in any combination.. For instance, nominal size 20 has the following combination options: B20-B20, B20-V20, V20-B20 and V20-V20.

The standard clamping bolts are socket cap screws DIN912. They can be replaced with adjustable clamping kits GN911 (see table of dimensions).

Specification

Aluminium AL - plastic coated, black, RAL 9005, textured finish SW. Blank, matt shot-blasted BL.

Clamping bores not machined.

Socket cap screws DIN912, Stainless Steel NI, AISI 304

Hexagon nuts DIN985 Stainless Steel NI, AISI 304

Accessory

Adjustable clamping kit GN911.
