GN193 3D CAD Model


GN193 T-Angle Connector Clamp, Aluminium, Split Assembly



GN193: T-Angle Connector Clamp

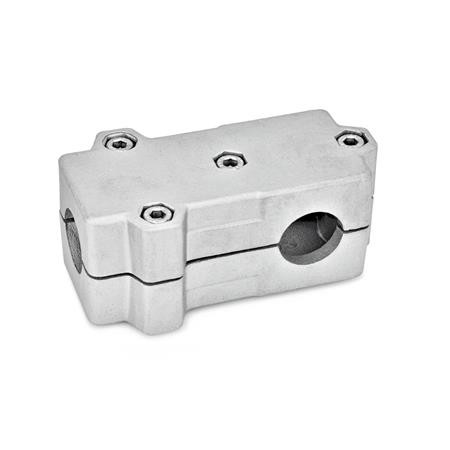

Bore d1: B40 - Finish: SW


GN193: T-Angle Connector Clamp

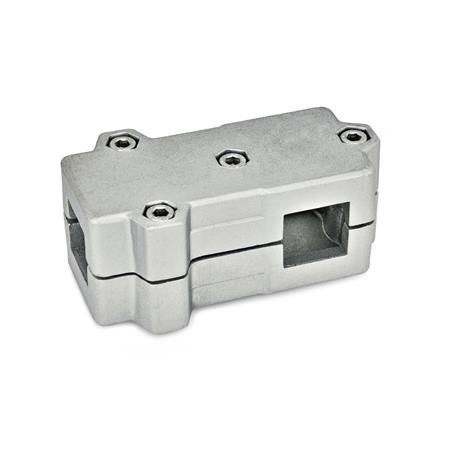

Bore s1: V40 - Finish: SW


GN193: T-Angle Connector Clamp
Bore d1: B40 - Finish: BL


GN193: T-Angle Connector Clamp
Bore d1: v40 - Finish: GB

CAD Viewer Technical Data

Series Selector


Identification No. 2 - with 4 clamping screws DIN912, stainless steel

d1 / d2 - B round bore

s1 / s2 - V  Square

CAD Viewer Technical Data

Product Description

GN193 T-Angle Connector Clamps, Aluminium, Split Assembly

The clamping bores of the T-angle connector clamps, GN 193, are not machined and are designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.

Bores and square bores of the same nominal size can be assembled in any combination. For instance, nominal size 20 has the following combination options: B20-B20, B20-V20, V20-B20 and V20-V20. The versions with square bores are also suitable for profile systems.

The standard clamping bolts are socket cap screws DIN912. They can be replaced by adjustable clamping kits GN911.


Aluminium AL - plastic coated, black, RAL 9005, textured finish, SW. Blank, matt shot-blasted BL.

Clamping bores not machined.

Socket cap screws DIN912 - Stainless Steel NI, AISI 304

Hexagon nuts DIN985 - Stainless Steel NI, AISI 304


Clamping Kit GN911.
