GN961 Angle pieces profile systems 30 40 Aluminium Assembly set cover T Nuts

All Standard Parts for Profile Systems
Standard Machine Elements > Tube Clamp Connectors, Clamp mountings & Connecting Elements > Other Connecting Elements
< Previous Product Next Product >

GN961 Angle Piece for Profile Systems 30 / 40

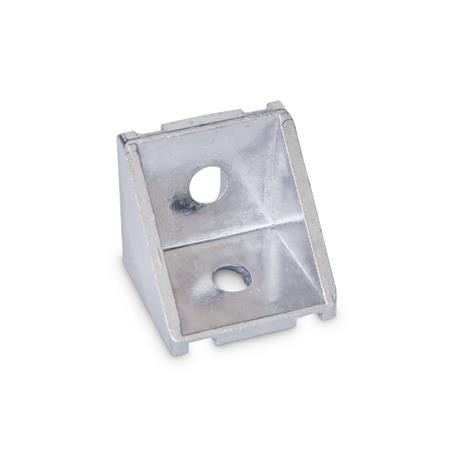

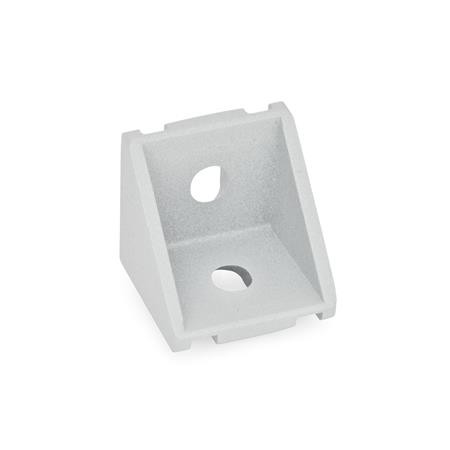

Type A - without assembly set, without cover.

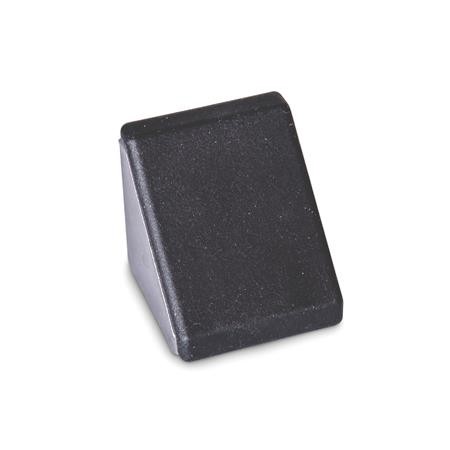

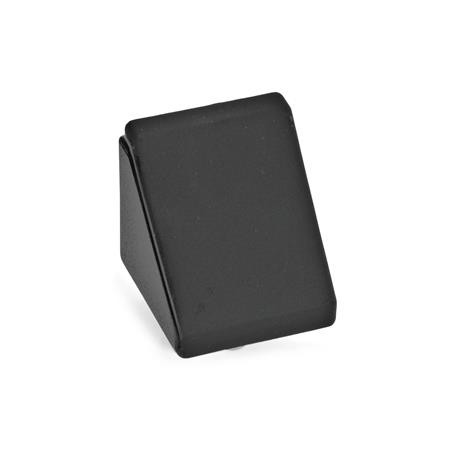

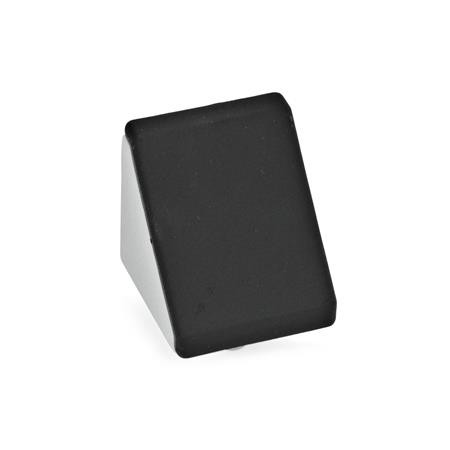

Type B -with assembly set, with cover.

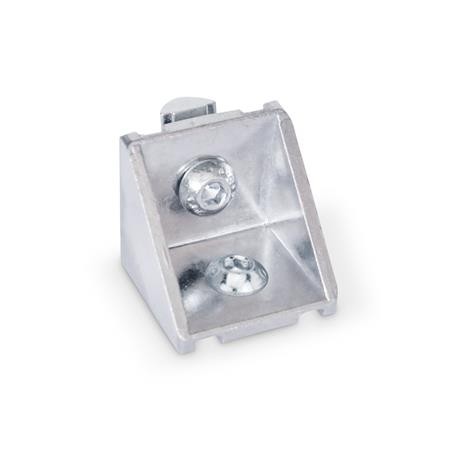

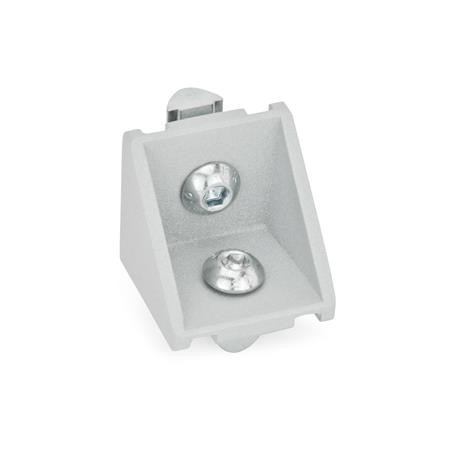

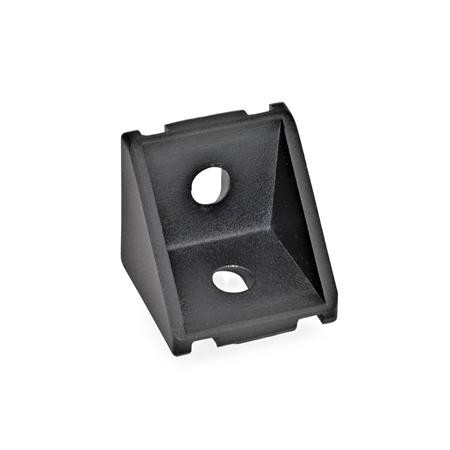

Type C - with assembly set, without cover

Select Values to Buy:

Tech Spec:

Product Description

GN961 Angle Piece for Profile Systems 30 / 40.

To fix the angle pieces in place, first insert the nuts of the assembly set into the profile slot and fix the angle piece with the slotted fillister head screw. The guide step of the nut will then position these in parallel and centered to the slot; the spring element counteracts inadvertent sideways slip.

For crossing profiles or when using the angle piece with elements without slot, the superfluous guide steps can be simply broken out.

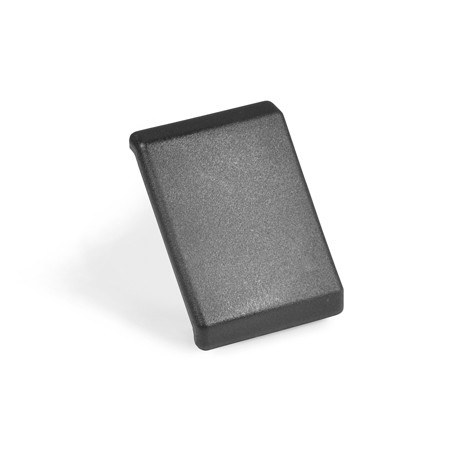

After assembly, the cover caps are snapped into place via four lugs. They lend the angle piece an attractive appearance and protect against dirt.

Even after repeated use, the cover caps will remain firmly in place inside the angle pieces thanks to the elastic snap-type lugs.

Specification

Aluminium die casting. Matt blasted MT. Plastic coated, black, RAL 9005, textured finish SW. Plastic coated, silver, RAL 9006, textured finish SR.

T-Nuts with guide step (GN506) - Steel, zinc plated, blue passivated.

Slotted fillister head screw ISO7380 - Steel, zinc plated, blue passivated.

Cover - Plastic (Polyamide PA), black, matt.

RoHS compliant

Select / Deselect Visible Columns
PartCodeMaterialb Norminal
size
b Actual
size
nl1l2dhl3l4l5sTypeFinishMass

GN961-30-6-30-30-A-SWAL3028630306.32.63156.85.9ASW0.024
GN961-30-6-30-30-A-SRAL3028630306.32.63156.85.9ASR0.023
GN961-30-6-30-30-A-MTAL3028630306.32.63156.85.9AMT0.023
GN961-30-6-30-30-B-SWAL3028630306.32.63156.85.9BSW0.01
GN961-30-6-30-30-B-SRAL3028630306.32.63156.85.9BSR0.04
GN961-30-6-30-30-B-MTAL3028630306.32.63156.85.9BMT0.04
GN961-30-6-30-30-C-SWAL3028630306.32.63156.85.9CSW0.01
GN961-30-6-30-30-C-SRAL3028630306.32.63156.85.9CSR0.04
GN961-30-6-30-30-C-MTAL3028630306.32.63156.85.9CMT0.04
GN961-40-8-40-40-A-SWAL4038840408.54.14207.25.6ASW0.04
GN961-40-8-40-40-A-SRAL4038840408.54.14207.25.6ASR0.041
GN961-40-8-40-40-A-MTAL4038840408.54.14207.25.6AMT0.039
GN961-40-8-40-40-B-SWAL4038840408.54.14207.25.6BSW0.08
GN961-40-8-40-40-B-SRAL4038840408.54.14207.25.6BSR0.08
GN961-40-8-40-40-B-MTAL4038840408.54.14207.25.6BMT0.08
GN961-40-8-40-40-C-SWAL4038840408.54.14207.25.6CSW0.08
GN961-40-8-40-40-C-SRAL4038840408.54.14207.25.6CSR0.08
GN961-40-8-40-40-C-MTAL4038840408.54.14207.25.6CMT0.07
