GN967 Angle Piece or Shackle, for Profile Systems

CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

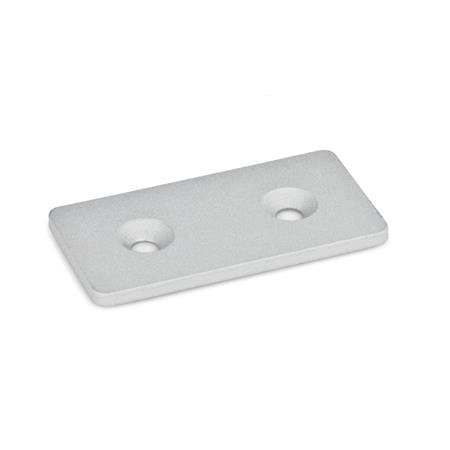

Type F - Shackle

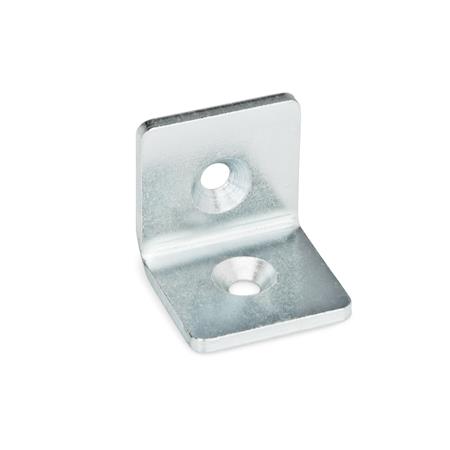

Type L - Angle

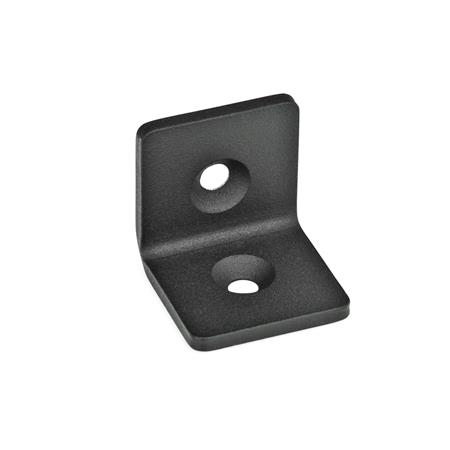

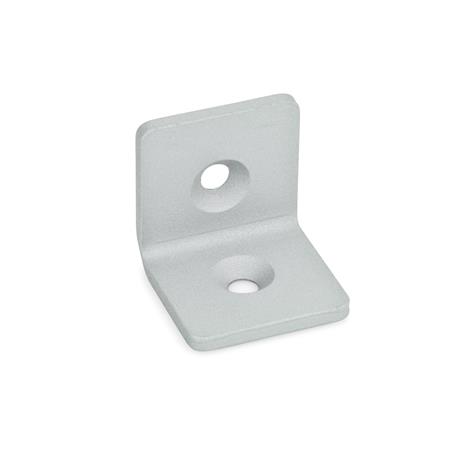

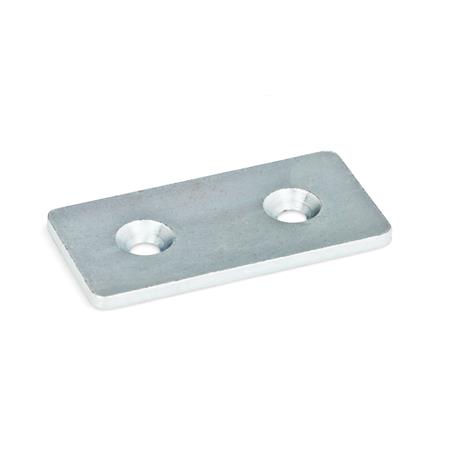

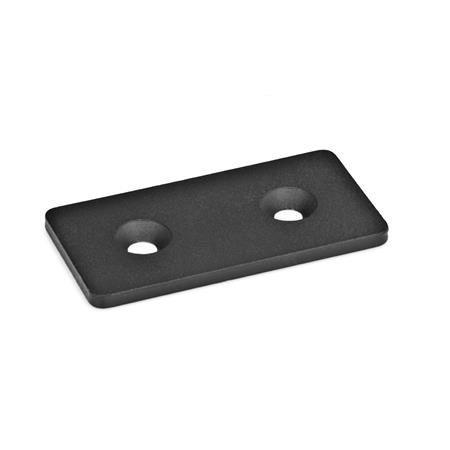

ID No.1 - with bore for countersunk screws DIN7991

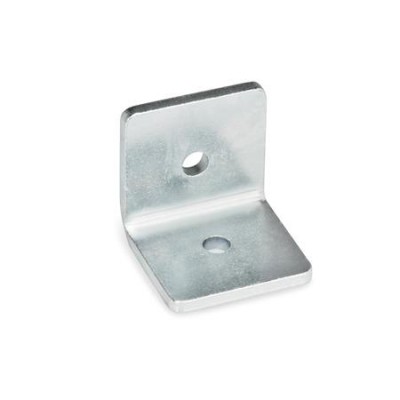

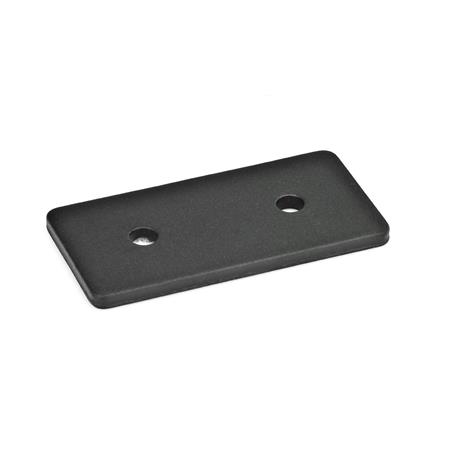

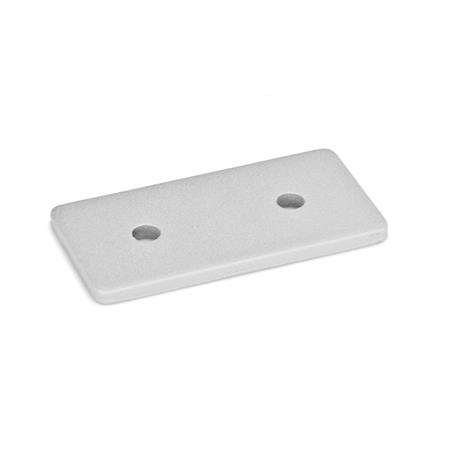

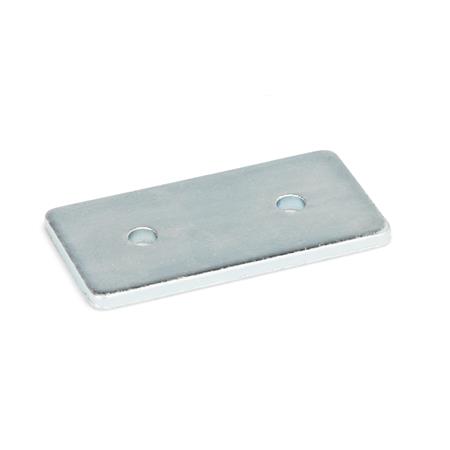

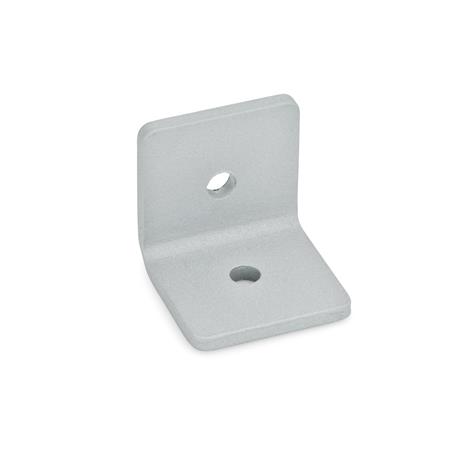

ID No.2 - with bore, without countersunk

CAD Viewer Technical Data

Product Description

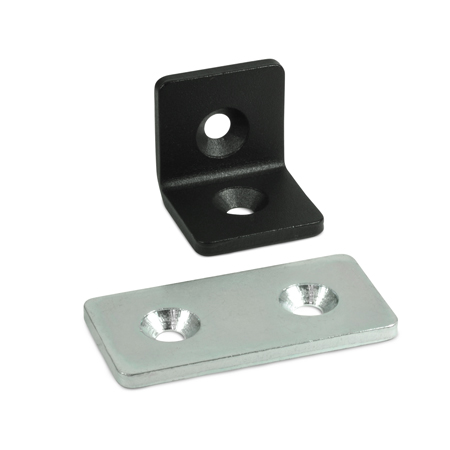

GN967 Angle Pieces/Shackles, for Profile Systems

These angle pieces and shackles are preferably used in conjunction with profile section systems. Square connections or connections with same contact area can be used in the smallest of spaces and with a high degree of stability.

Over and above the profile system configurations, the angle pieces and shackles can also be used for a wide variety of different fixing and retaining tasks, for instance in the design of jigs and fixtures.

In the version with ID No. 2 the drill holes are designed without countersunk hole to allow fixing with cylinder head screws, nuts or rivets.

Specification

Sheet steel, zinc plated, blue passivated ZB.

plastic coated, black, RAL 9005, textured finish SW, silver, RAL 9006, textured finish SR.
