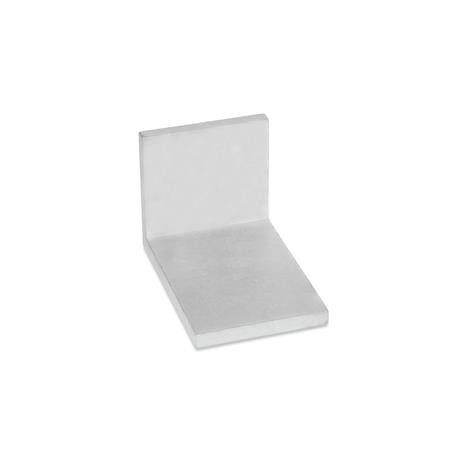

Type A - Without bores

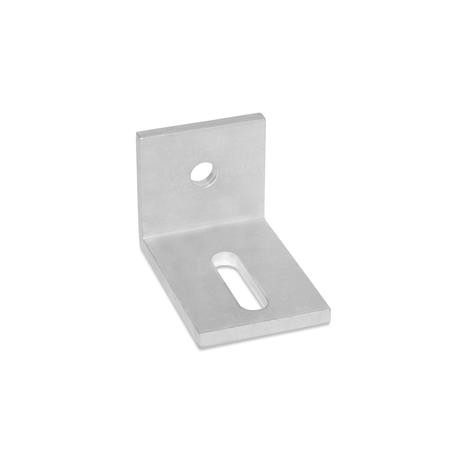

Type C - With bores and slotted holes
GN970 Installation Brackets, Unequal Sides
These installation brackets GN 970 are used universally for right-angle connecting, fixing and fastening of, e.g. base plates or covers.
Type A allows for the use of drilling templates specific to the application as well as fastening by welding.
Type C installation brackets have one or two combinations of a hole and an elongated hole depending on the length l1.
Structural Steel STB - Drawn, with sharp edges, blackened
Aluminum ALM - Pressed, matt, ground
