GN565.3 Cabinet U Shape Handle, Aluminium

CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

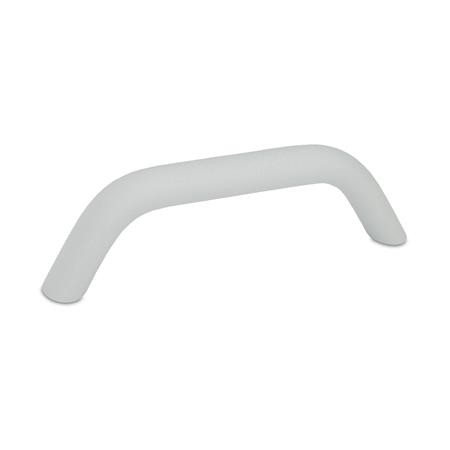

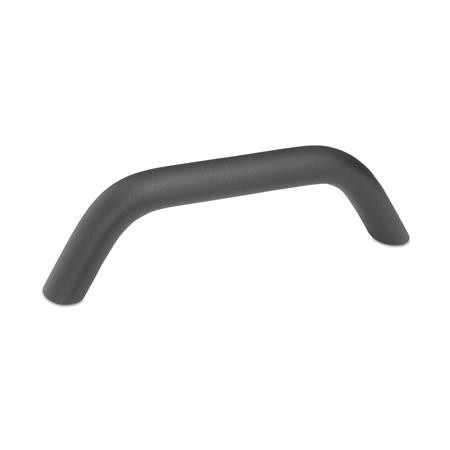

Type A - mounting from the back (threaded blind bore)

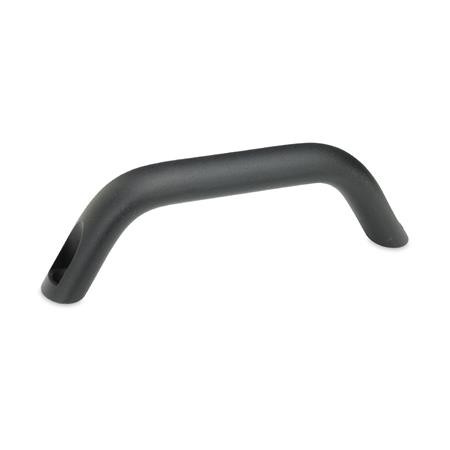

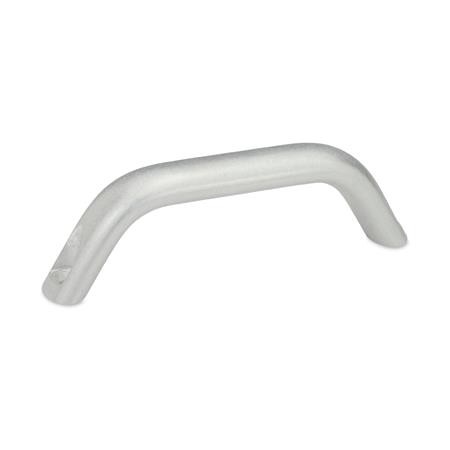

Type B - mounting from the operator's side

CAD Viewer Technical Data

Product Description

GN565.3 Cabinet U Shape Handle, Aluminium.

These cabinet "U" handles are a variant of GN565. They are suitable for applications where lower lifting forces are required such as on lids or on protective machine covers. They can be plastic coated, for a better grip.

They can be mounted from the back (Type A) as well as from the front (Type B).

The countersunk holes of type B allow fixing with self tapping screws or countersunk rivets.

The manufacturing process (bending) allows the production of special lengths in relatively small quantities.

Specification

Aluminium, plastic coated, black SW RAL 9005, textured finish. Silver SR, RAL 9006, textured finish. Anodized, natural colour. Blank BL tumbled.
