GN668 Flat profile Aluminum cabinet shape u handles GN 668

Standard Parts for Clamping & Operating & Machine Fixtures > Cabinet, U & Tubular Handles, Gripping Trays > Cabinet U Handles
< Previous Product Next Product >

GN668 Flat Profile, Cabinet U Shape Handle, Aluminium



images/300/GN668-Flat-cabinet-U-handles-Aluminium-sketch_H.png

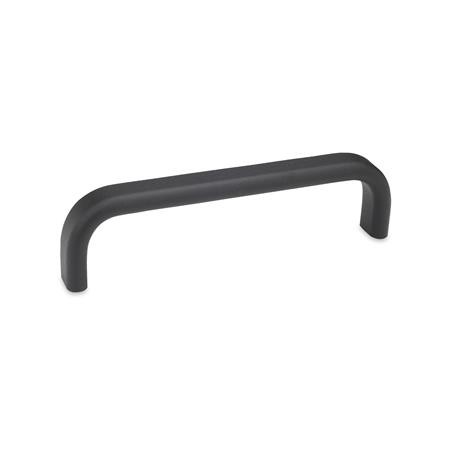

Type A - Mounting from the back (threaded blind bore)

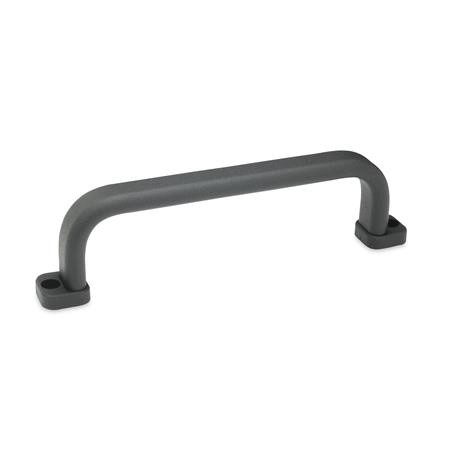

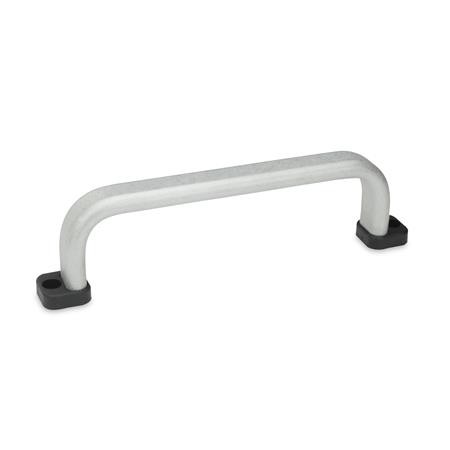

Type B - Mounting from the operators side (b1 = 20)

Select Values to Buy:

Tech Spec:



GN 668 Flat Profile, Cabinet U Shape Handle, Aluminium

These cabinet handles are produced from aluminium extrusions.

They can be mounted either from the back, type A or by means of the handle base from the operators side, type B.

The manufacturing process (bending) allows the production of special lengths in relatively small quantities.

Specification

Aluminium

Plastic coated, black SW RAL 9005, textured finish.

Blank BL, tumbled.

Handle base - Plastic Technopolymer (polyamide PA), black, matt.

RoHS compliant

Select / Deselect Visible Columns
PartCodeb1l1TypeFinishab2dh1h2h3l2l3l4rt1t2MaterialMass

GN668-20-130-A-SW20130ASW1023M 545~~120~~1510~AL0.089
GN668-20-130-A-BL20130ABL1023M 545~~120~~1510~AL0.085
GN668-20-130-B-SW20130BSW1023~456.5212014115315~5.5AL0.1
GN668-20-130-B-BL20130BBL1023~456.5212014115315~5.5AL0.1
GN668-20-170-A-SW20170ASW1023M 545~~160~~1510~AL0.111
GN668-20-170-A-BL20170ABL1023M 545~~160~~1510~AL0.105
GN668-20-170-B-SW20170BSW1023~456.5216018119315~5.5AL0.12
GN668-20-170-B-BL20170BBL1023~456.5216018119315~5.5AL0.115
GN668-20-190-A-SW20190ASW1023M 545~~180~~1510~AL0.12
GN668-20-190-A-BL20190ABL1023M 545~~180~~1510~AL0.115
GN668-20-190-B-SW20190BSW1023~456.5218020121315~5.5AL0.13
GN668-20-190-B-BL20190BBL1023~456.5218020121315~5.5AL0.125
GN668-20-210-A-SW20210ASW1023M 545~~200~~1510~AL0.125
GN668-20-210-A-BL20210ABL1023M 545~~200~~1510~AL0.125
GN668-20-210-B-SW20210BSW1023~456.5220022123315~5.5AL0.136
GN668-20-210-B-BL20210BBL1023~456.5220022123315~5.5AL0.142
GN668-30-262-A-SW30262ASW12~M 650~~250~~1512~AL0.289
GN668-30-262-A-BL30262ABL12~M 650~~250~~1512~AL0.277
GN668-30-312-A-SW30312ASW12~M 650~~300~~1512~AL0.334
GN668-30-312-A-BL30312ABL12~M 650~~300~~1512~AL0.321
GN668-30-362-A-SW30362ASW12~M 650~~350~~1512~AL0.38
GN668-30-362-A-BL30362ABL12~M 650~~350~~1512~AL0.367
GN668-30-412-A-SW30412ASW12~M 650~~400~~1512~AL0.425
GN668-30-412-A-BL30412ABL12~M 650~~400~~1512~AL0.41
