Product Description

GN 528 (M.443 CH) Cabinet U Handle, Plastic, Heat Resistant

These cabinet U handles are fitted to doors or drawers from the outside using cap screws.

Cabinet U handles PP (Polypropylene) are less useful from a mechanical and thermal viewpoint, but are more price competitive. They are adequate for many applications.

Cabinet U handles SV are made of a plastic material type UL 94 V-0 which is self extinguishing. The classification to UL 94 V-0 (Underwiters Laboratories) covers the properties and durability against fire. According to their tests a plastic test piece of a defined shape and dimension is set alight in a vertical position whereby the flame on a scale from V - 0 has to extinguish itself within 10 secs without leaving any burning droplets.

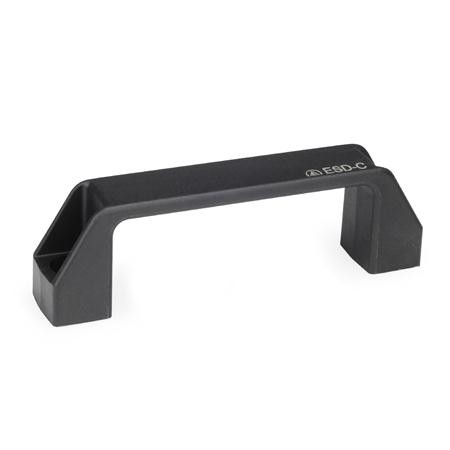

Cabinet U handles type ESD are made out of a conductive plastic material which prevents an electrostactical loading. The imprint "ESD" on the surface of the handle defines the special antistatical properties according to IEC 61340-5-1.

Specification

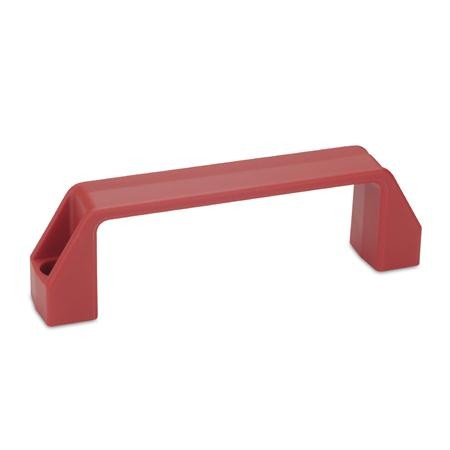

Plastic - Technopolymer (Polyamide) PA glass fibre reinforced. Temperature resistant up to 150ºC. Black SW RAL 9005, matt. Orange OR RAL 2004, matt. Grey GR RAL 7031, matt. Red RT RAL 3000, matt.

Plastic - Technopolymer (Polypropylene) PP glass fibre reinforced. Temperature resistant up to 100ºC. Black SW RAL 9005, matt.

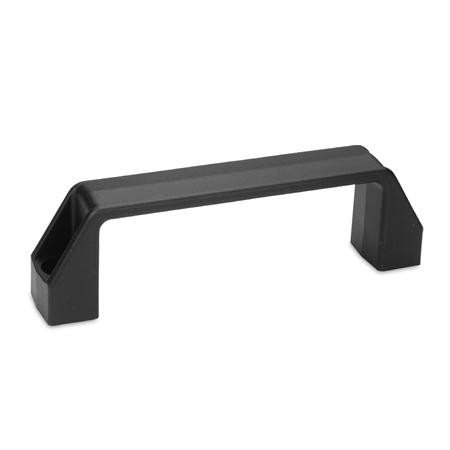

Plastic - Self-extinguishing Technopolymer SV glass fibre reinforced. Temperature resistant up 150ºC. Black SW RAL 9005, matt.

Plastic - Technopolymer (Polyamide PA) ESD, antistatic. glass fibre reinforced. Temperature resistant up 150ºC. Black SW RAL 9005, matt.
