DIN319 Ball Knobs Plastic Threaded Bush red Tapped Hole handle DIN 319

Standard Parts for Clamping & Operating & Machine Fixtures > Knobs & Handles > Knobs
< Previous Product Next Product >

DIN319 Ball Knob, Plastic, Red, Threaded Steel Bush or Tapped Hole

images/300/DIN319_Red_Plastic_Brass_Bush_H.png

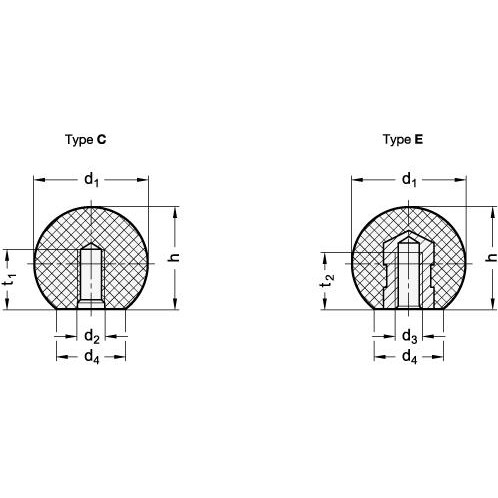

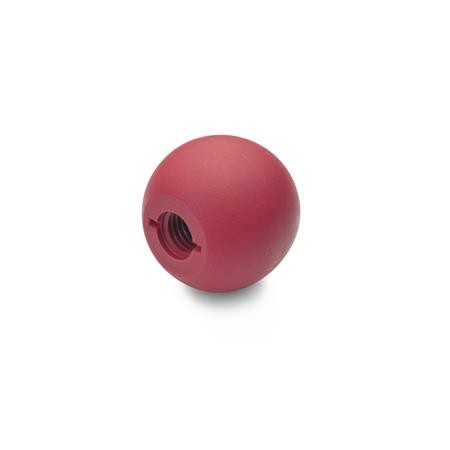

Type C - With tapped hole (no insert).

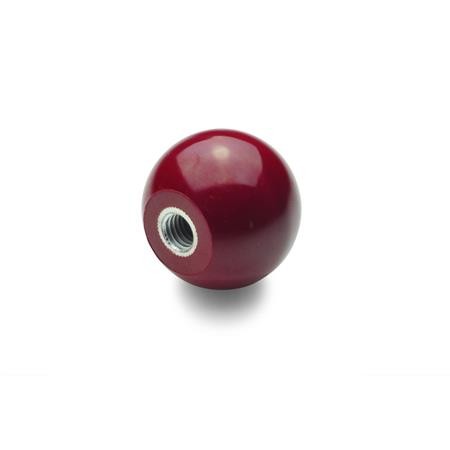

Type - With threaded bush.

Select Values to Buy:

Tech Spec:



DIN 319 Ball Knob, Plastic, Threaded Steel Bush or Tapped Hole

Comfortable, modern design for use on crank handles, handwheels and levers. Being red in colour, this ball knob is ideal for safety applications.

Specification

Plastic KU, flash removed and polished, red, (similar to RAL 3003).

Insert (Type E) - Steel, zinc plated (standard).

Plastic KT, shock resistant, red, (similar to RAL 3000).

Insert (Type E) - steel, zinc plated. (standard)

RoHS Compliant

Select / Deselect Visible Columns
PartCodeMateriald1d2/d3d4ht1 min/t2 MinTypeColourMass

DIN319-KU-16-M4-C-RTKU16M48156CRT0.003
DIN319-KT-16-M4-C-RTKT16M48156CRT0.003
DIN319-KU-16-M5-C-RTKU16M58156CRT0.003
DIN319-KT-16-M5-C-RTKT16M58156CRT0.002
DIN319-KU-16-M4-E-RTKU16M48156ERT0.003
DIN319-KU-20-M5-C-RTKU20M512187.5CRT0.005
DIN319-KT-20-M5-C-RTKT20M512187.5CRT0.005
DIN319-KU-20-M6-C-RTKU20M612187.5CRT0.005
DIN319-KT-20-M6-C-RTKT20M612187.5CRT0.005
DIN319-KU-20-M5-E-RTKU20M512187.5ERT0.009
DIN319-KT-20-M5-E-RTKT20M512187.5ERT0.008
DIN319-KU-25-M6-C-RTKU25M61522.59CRT0.009
DIN319-KT-25-M6-C-RTKT25M61522.59CRT0.009
DIN319-KU-25-M8-C-RTKU25M81522.59CRT0.01
DIN319-KT-25-M8-C-RTKT25M81522.59CRT0.01
DIN319-KU-25-M6-E-RTKU25M61522.59ERT0.015
DIN319-KT-25-M6-E-RTKT25M61522.59ERT0.013
DIN319-KU-32-M8-C-RTKU32M8182912CRT0.022
DIN319-KT-32-M8-C-RTKT32M8182912CRT0.02
DIN319-KU-32-M10-C-RTKU32M10182912CRT0.022
DIN319-KT-32-M10-C-RTKT32M10182912CRT0.021
DIN319-KU-32-M8-E-RTKU32M8182912ERT0.029
DIN319-KT-32-M8-E-RTKT32M8182912ERT0.028
DIN319-KU-35-M10-C-RTKU35M101832.515CRT0.034
DIN319-KU-40-M10-C-RTKU40M10223715CRT0.043
DIN319-KT-40-M10-C-RTKT40M10223715CRT0.04
DIN319-KU-40-M12-C-RTKU40M12223715CRT0.041
DIN319-KT-40-M12-C-RTKT40M12223715CRT0.04
DIN319-KU-40-M10-E-RTKU40M10223715ERT0.054
DIN319-KU-50-M12-C-RTKU50M12284618CRT0.083
DIN319-KU-50-M12-E-RTKU50M12284618ERT0.108
DIN319-KU-12-M4-C-RTKU12M4CRT0.001
#36622.69~36625.18#

Application Example

Here you can see an example of DIN319 Ball knobs in use, on a bending machine.
