DIN3670 Disc Handwheels Aluminium Recessed Grips without handle DIN 3670

Standard Parts for Clamping & Operating & Machine Fixtures > Handwheels & Cranked Handles > Disc Handwheel
< Previous Product Next Product >

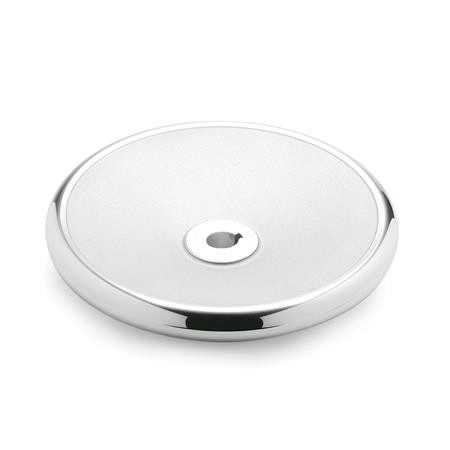

DIN3670 Disc Handwheel, Aluminium, Recessed Grips





Bore code B - Plain Bore

Bore code K - With Keyway

Select Values to Buy:

Tech Spec:



DIN 3670 Disc Handwheel, Aluminium, Recessed Grips.

These handwheels have an attractive dished design and have recesses in the back for a easy, comfortable grip. They are used amongst other applications for the accurate adjustment of machinery. Usually these handwheels are supplied without a handle, although the mounting of a handle is possible.

Specification

Hub - machined.

Rim - turned and polished, concentric and square to bore < 0.4

Body - unmachined, shot-blasted.

RoHS compliant

Select / Deselect Visible Columns
PartCodeMateriald1d2d3bl1l2Bore CodeMass

DIN3670-80-B10AL801026141629B0.128
DIN3670-80-K10AL801026141629K0.126
DIN3670-80-B12AL801226141629B0.127
DIN3670-80-K12AL801226141629K0.125
DIN3670-100-B10AL1001028151733B0.188
DIN3670-100-K10AL1001028151733K0.187
DIN3670-100-B12AL1001228151733B0.185
DIN3670-100-K12AL1001228151733K0.184
DIN3670-125-B12AL1251231161836B0.306
DIN3670-125-K12AL1251231161836K0.304
DIN3670-125-B14AL1251431161836B0.289
DIN3670-125-K14AL1251431161836K0.302
DIN3670-160-B14AL1601436182040B0.514
DIN3670-160-K14AL1601436182040K0.48
DIN3670-160-B16AL1601636182040B0.48
DIN3670-160-K16AL1601636182040K0.505
DIN3670-200-B18AL2001842222445B0.943
DIN3670-200-K18AL2001842222445K0.901
DIN3670-200-B20AL2002042222445B0.938
DIN3670-200-K20AL2002042222445K0.935
DIN3670-200-B22AL2002242222445B0.934
DIN3670-200-K22AL2002242222445K0.881
DIN3670-250-B22AL2502248262850B1.608
DIN3670-250-K22AL2502248262850K1.7
DIN3670-250-B24AL2502448262850B1.596
DIN3670-250-K24AL2502448262850K1.592
DIN3670-250-B26AL2502648262850B1.582
DIN3670-250-K26AL2502648262850K1.578
DIN3670-315-B26AL3152656283356B2.695
DIN3670-315-K26AL3152656283356K2.69
DIN3670-315-B28AL3152856283356B2.689
DIN3670-315-K28AL3152856283356K2.684
DIN3670-315-B30AL3153056283356B2.683
DIN3670-315-K30AL3153056283356K2.69
DIN3670-400-B30AL4003065323863B5
DIN3670-400-K30AL4003065323863K4.6
DIN3670-400-B32AL4003265323863B4.342
DIN3670-400-K32AL4003265323863K4.552
DIN3670-315-B122.7
DIN3670-315-K122.697
