GN71802.1 Axial Ball Joint, Threaded Stud, Steel / Stainless Steel

Close Next Previous

Close Next Previous

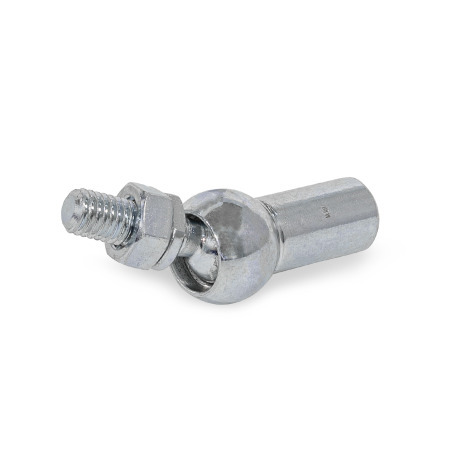

GN71802.1 Axial Ball Joints, with Threaded Stud
Material: ST

Close Next Previous

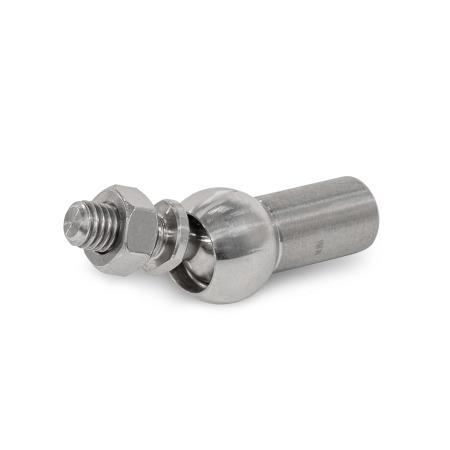

GN71802.1 Axial Ball Joints, with Threaded Stud
Material: NI

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type C - With threaded stud.

Product Description

GN71802.1 Axial Ball Joint, Threaded Stud, Steel / Stainless Steel

Axial ball joints GN 71802.1 are used in linear drives and lifting systems, for example, to transmit compressive forces in the axial direction, thereby compensating for angular offsets. They consist of a ball shank DIN71803 and an axial ball socket.

A snap ring holds the axial ball joint together under tension up to the specified minimum pull-off force. This force must be overcome for assembly and disassembly.

To protect the axial ball joints from dirt and to keep lubricating grease in the joint, dust caps GN710 are available as an accessory. The hex nut is included as part of the delivery.

Specification

Ball Socket / Ball Shank, ball seat greased

Steel, property class 4.6, zinc plated, colourless passivated, ball shank hardened. ST
Stainless steel AISI 304, plain finish NI

Hex nut DIN934

ST

Stainless steel for NI

Note - M14F = M14x1,5

Accessory

Dust caps GN710

Related Series


DIN71802
Angled Ball Joint, Threaded Ball Shank, Steel, Zinc Plated
