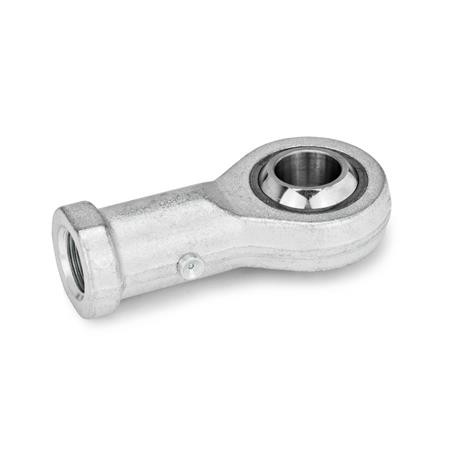

GN648.1 Ball Joint Head, Female Thread







Type N - Brass / Steel, Lubrication Possible

Type W - Steel - Steel PTFE / Steel, Self Lubricated

Select Values to Buy:

Tech Spec:



GN 648.1 Ball Joint Head, Female Thread

Ball joint heads are ideal for a range of mounting applications as they swivel in all directions. These ball joints GN648.1 are similar to DINISO 12240-4, series K (formerly DIN648 K).

Specification

Housing - Steel, zinc plated, blue passivated. d1 = 5 up to 12: machined. d1 = 14 up to 25: forged

Pairings:

Type N (lubrication possible)

Bearing socket - Brass, CuZn40Al

Internal ring - Steel 100 Cr6, hardened, ground, polished.

Type W (self lubricated)

Bearing socket - Steel, zinc plated, with PTFE-insert

Internal ring - Steel, 100 Cr6, hardened, ground, polished.

Ball joints DINISO 12240-4, series E (narrow model) available on request.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1d2b1b2d3d4d5d6l1l2A/FtwTypeMaterialMass

GN648.1-5-M5L-N5M5L867.718911273691013°NST0.019
GN648.1-5-M5L-W5M5L867.718911273691013°WST0.018
GN648.1-5-M4-N5M4867.718911273691013°NST0.02
GN648.1-5-M4-W5M4867.718911273691013°WST0.019
GN648.1-5-M5-N5M5867.718911273691013°NST0.019
GN648.1-5-M5-W5M5867.718911273691013°WST0.019
GN648.1-6-M6L-N6M6L96.758.92010133040111213°NST0.026
GN648.1-6-M6L-W6M6L96.758.92010133040111213°WST0.025
GN648.1-6-M6-N6M696.756.752010133040111213°NST0.027
GN648.1-6-M6-W6M696.758.92010133040111213°WST0.025
GN648.1-8-M8L-N8M8L12910.42412.5163648131614°NST0.047
GN648.1-8-M8L-W8M8L12910.42412.5163648131614°WST0.045
GN648.1-8-M8-N8M812910.42412.5163648131614°NST0.048
GN648.1-8-M8-W8M812910.42412.5163648131614°WST0.045
GN648.1-10-M10L-N10M10L1410.512.92815194357172013°NST0.077
GN648.1-10-M10L-W10M10L1410.512.92815194357172013°WST0.074
GN648.1-10-M10X1,25-N10M10x1,251410.512.92815194357172013°NST0.075
GN648.1-10-M10X1,25-W10M10x1,251410.512.92815194357172013°WST0.075
GN648.1-10-M10-N10M101410.512.92815194357172013°NST0.076
GN648.1-10-M10-W10M101410.512.92815194357172013°WST0.075
GN648.1-12-M12L-N12M12L161215.43217.5225066192213°NST0.114
GN648.1-12-M12L-W12M12L161215.43217.5225066192213°WST0.111
GN648.1-12-M12X1,25-N12M12x1,25161215.43217.5225066192213°NST0.11
GN648.1-12-M12X1,25-W12M12x1,25161215.43217.5225066192213°WST0.11
GN648.1-12-M12-N12M12161215.43217.5225066192213°NST0.114
GN648.1-12-M12-W12M12161215.43217.5225066192213°WST0.11
GN648.1-14-M14L-N14M14L1913.516.83620255775222516°NST0.175
GN648.1-14-M14L-W14M14L1913.516.83620255775222516°WST0.167
GN648.1-14-M14-N14M141913.516.83620255775222516°NST0.168
GN648.1-14-M14-W14M141913.516.83620255775222516°WST0.16
GN648.1-16-M16L-N16M16L211519.34222276485222815°NST0.23
GN648.1-16-M16L-W16M16L211519.34222276485222815°WST0.224
GN648.1-16-M16X1,5-N16M16x1,5211519.34222276485222815°NST0.225
GN648.1-16-M16X1,5-W16M16x1,5211519.34222276485222815°WST0.221
GN648.1-16-M16-N16M16211519.34222276485222815°NST0.232
GN648.1-16-M16-W16M16211519.34222276485222815°WST0.225
GN648.1-18-M18X1,5L-N18M18x1,5L2316.521.84625317194273215°NST0.314
GN648.1-18-M18X1,5L-W18M18x1,5L2316.521.84625317194273215°WST0.32
GN648.1-18-M18X1,5-N18M18x1,52316.521.84625317194273215°NST0.318
GN648.1-18-M18X1,5-W18M18x1,52316.521.84625317194273215°WST0.3
GN648.1-20-M20X1,5L-N20M20x1,5L251824.35027.53477102323314°NST0.417
GN648.1-20-M20X1,5L-W20M20x1,5L251824.35027.53477102323314°WST0.408
GN648.1-20-M20X1,5-N20M20x1,5251824.35027.53477102323314°NST0.419
GN648.1-20-M20X1,5-W20M20x1,5251824.35027.53477102323314°WST0.405
GN648.1-22-M22X1,5L-N22M22x1,5L282025.854303784111323715°NST0.519
GN648.1-22-M22X1,5L-W22M22x1,5L282025.854303784111323715°WST0.512
GN648.1-22-M22X1,5-N22M22x1,5282025.854303784111323715°NST0.534
GN648.1-22-M22X1,5-W22M22x1,5282025.854303784111323715°WST0.505
GN648.1-25-M24X2L-N25M24x2L312229.66033.54294124364215°NST0.744
GN648.1-25-M24X2L-W25M24x2L312229.66033.54294124364215°WST0.725
GN648.1-25-M24X2-N25M24x2312229.66033.54294124364215°NST0.735
GN648.1-25-M24X2-W25M24x2312229.66033.54294124364215°WST0.72
GN648.1-30-M30X2L-W30M30x2L372534.8704051110145415117°WST1.13
GN648.1-30-M30X2-W30M30x2L372534.8704051110145415117°WST1.1
