Please select desired options to reveal part number, price and availability
Options
Type KVB - With ball lever, angular serrations.
Type GVB - With ball lever, straight serrations.
Type SKB - With hexagon.
Clamping direction L - Anti-clockwise rotation, (drawn version).
Clamping direction R - Clockwise rotation.
Product Description

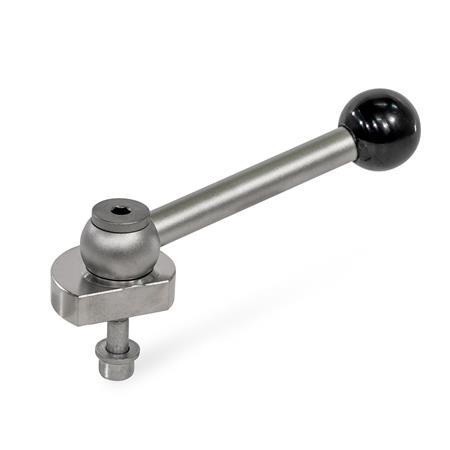

GN918.5 Eccentrical Cam, Screw from the Back, Stainless Steel
Eccentric cams GN 918.5 allow the rapid and secure clamping and releasing at a relatively large clamping range and with high clamping force. The cam offers the advantage that the clamping force remains constant in every angular position and is self-locking at the same time.
Fastening the screw from the back allows the use, if there is no thread in the surrounding structure. The heavy duty washer absorbs and transfers the resulting screw forces. The spigot of the thrust washer provides protection from impermissible lateral forces on the socket cap screw.
The ball levers of types KVB and GVB feature a positive connection with the eccentric cam by means of a serration. During assembly, the position of the lever can thus be fixed in a position that is favourable for clamping.
Specification
CAD Viewer
Technical Data
