GN147.1 Linear actuator connectors clamped movement hexagonal nut socket screw cap self locking steel zinc plated

Standard Machine Elements > Guides, Spindles, Ball Rollers, Slide Units, Guide Rails & Linear Actuators > Linear Actuators / Linear Actuator Connectors
< Previous Product Next Product >

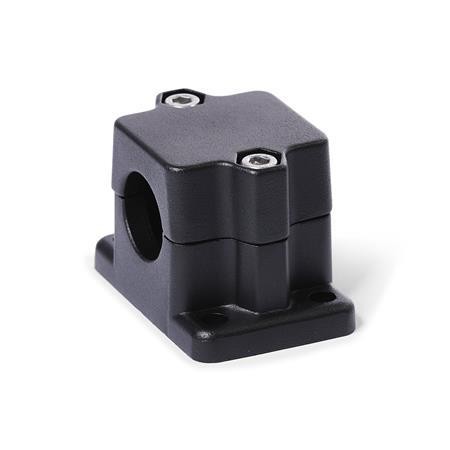

GN147.1 Linear Actuator Connector, Aluminium







Identification 2 - with 2 clamping screw DIN 912, stainless steel

Select Values to Buy:

Tech Spec:



GN147.1 Linear Actuator Connector, Aluminium

Linear actuator connectors GN147.1 are normally supplied only in connection with a mounted square linear actuator and for function control.

By means of the clamping screw and self-locking hexagonal nut (polyamide ring) the movement can either be set or the linear actuator connector can be clamped (after setting of final adjustment).

The standard clamping bolts are socket cap screws DIN912. They can be used in place of adjustable clamping levers GN911 (see table of dimensions).

Square linear actuators GN291.1

Specification

Aluminium, plastic coated, black SW RAL 9005, textured finish

Clamping square not machined

Socket cap screws DIN912, Steel zinc plated / Stainless Steel AISI 304

Hexagon nuts DIN985, Steel zinc plated / Stainless Steel AISI 304

Adjustable clamping lever GN911, Zinc die casting

Inserts / Distance bushings, Stainless Steel AISI 303

RoHS compliant

Select / Deselect Visible Columns
PartCodesId. No.Finishd1d2d3kl1l2mtx1x2y1y2Clamping lever for d2Mass

GN147.1-V30-2-SWV302SW6.5M8M450536830750357560GN911-M8-450.221
GN147.1-V40-2-SWV402SW11M10M57681.59846.514765011590GN911-M10-700.643
GN147.1-V50-2-SWV502SW11M10M67681.59846.514765011590GN911-M10-700.7
